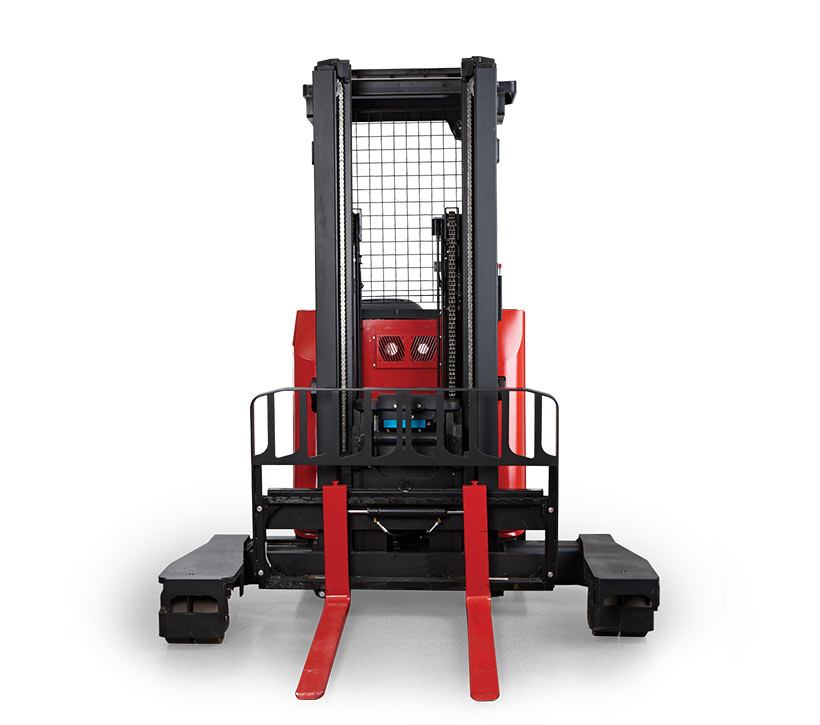

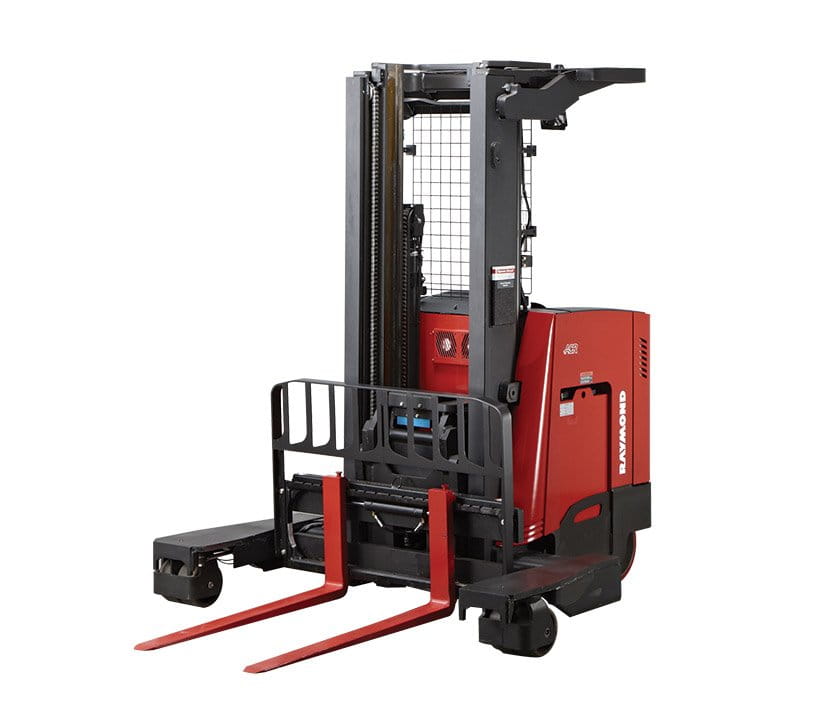

7310 4-D Reach-Fork Truck Multi Directional Forklift
-
-

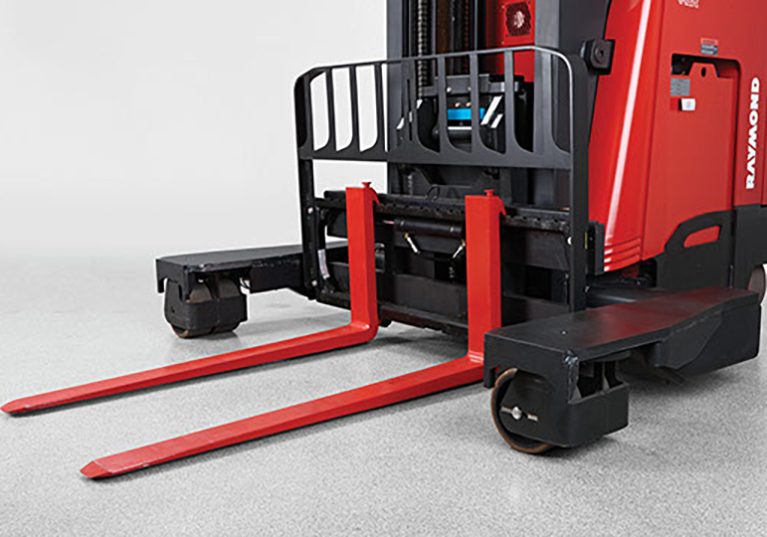

4-Directional Travel
Articulating load wheels add lateral maneuverability to standard forward and rearward movement, eliminating right-angle turns.4-Directional Travel -
ACR System
Reduced energy and maintenance costs, quicker acceleration and smoother directional changes.ACR System -

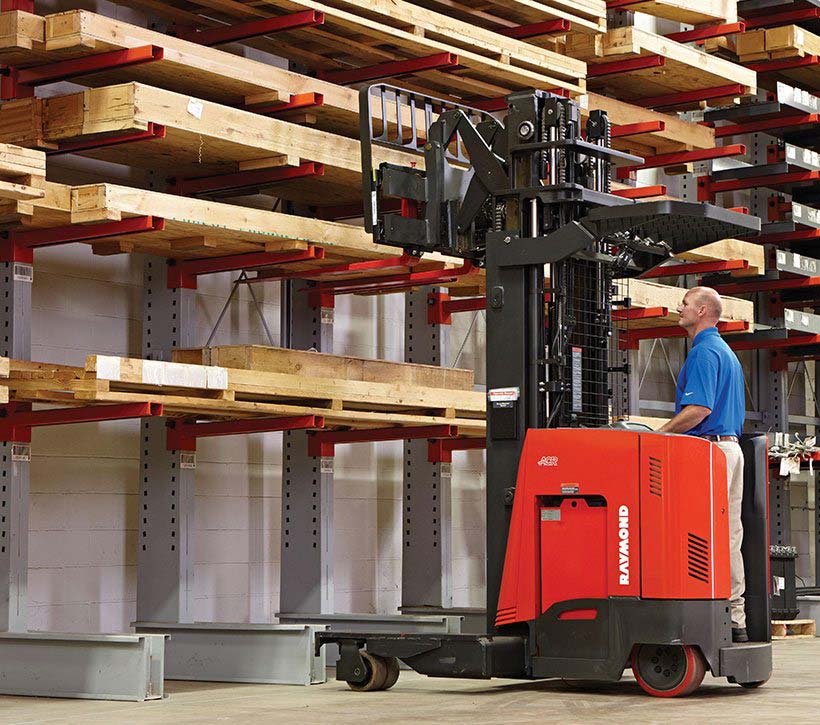

Universal Stance
A Raymond-exclusive configuration, provides greater visibility and operator comfort in either direction.Universal Stance -

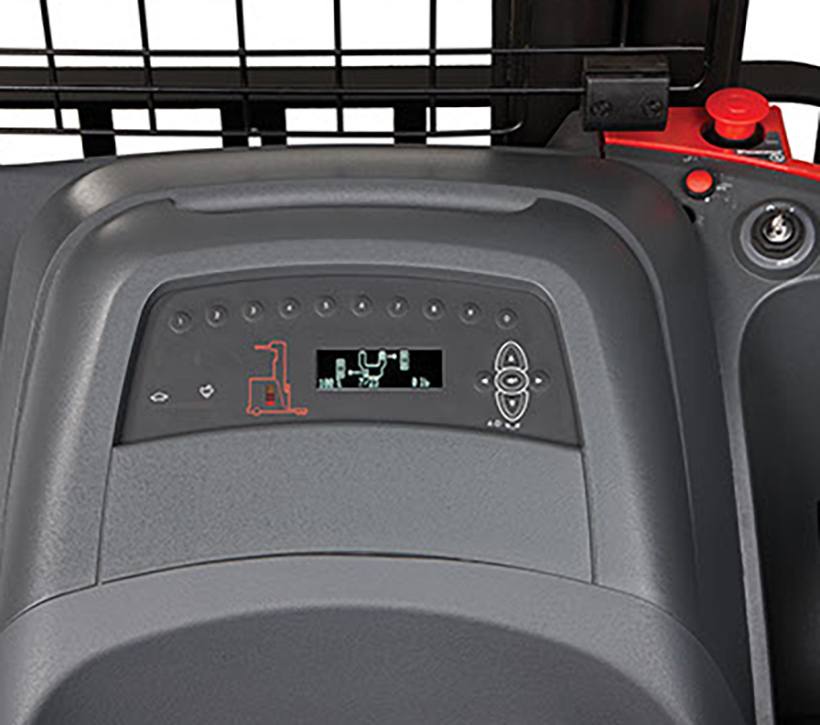

Operator's Display
Provides a quick reference indicator of 4-D travel direction, with mode indicator lights for easy directional selection and automatic positioning.Operator's Display -

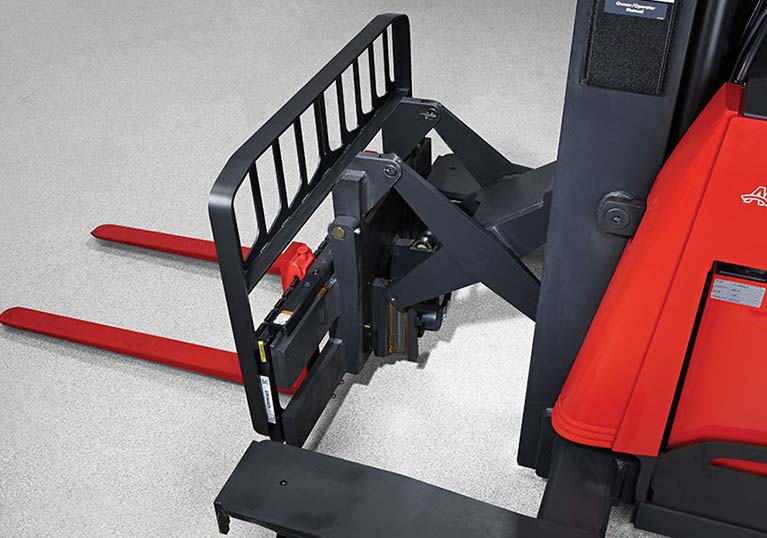

Solid Reach Mechanism
Torsion tube anti-friction scissor designed with radial thrust bearings extend the life of the mast and scissor mechanism.Solid Reach Mechanism
Increase Storage up to 40%
The Raymond 7310 4-D reach truck is a multi directional forklift that eliminates the need for right-angle turns, reducing the aisle width needed for long load handling and bulky loads. This narrow aisle forklift features a unique four-directional travel mode that enables outstanding maneuverability and efficiency, and results in less damage.
- Battery: 36 volts
- Capacity: 4,500 lbs.
- Elevated Height: 270" maximum
Built to Perform
-

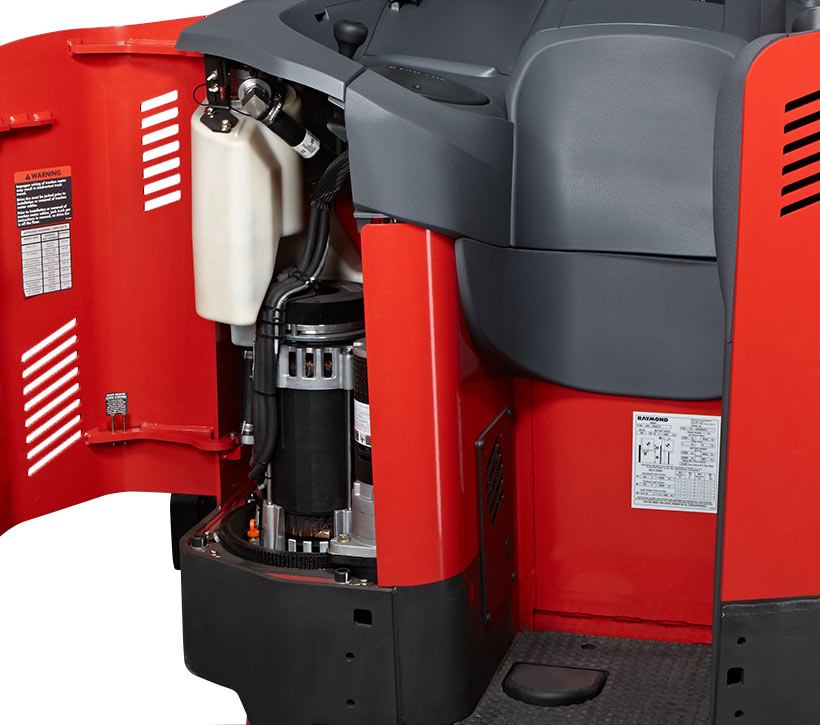

ACR System
Raymond's exclusive ACR System delivers longer battery life and lower energy costs. -
High Performance
Get the speeds necessary to power your operation with 36-volt performance.
-

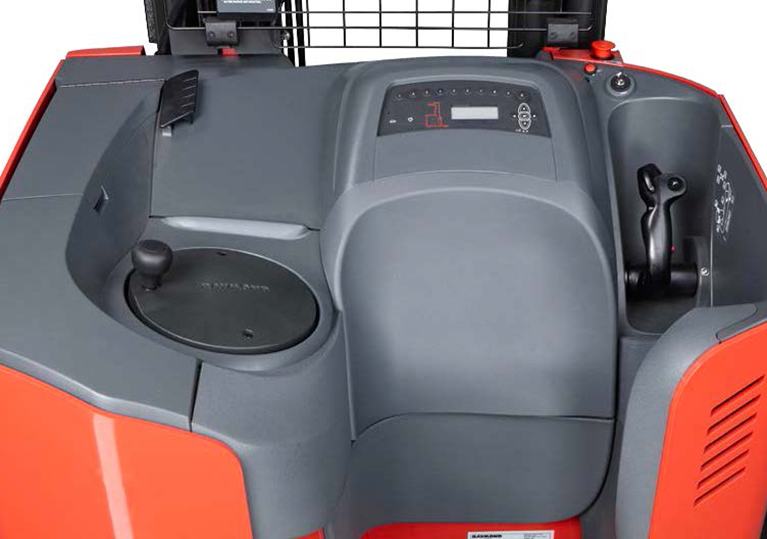

Comfortable Compartment
The padded, wraparound compartment provides shift-long comfort. -

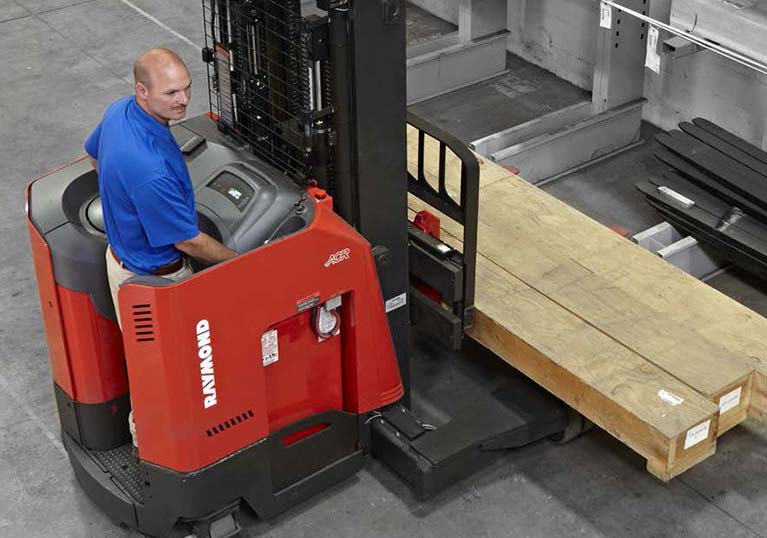

Low Step Height
The 9.25-inch entry-step height helps operators avoid unnecessary climbing for easier entry into compartment. -

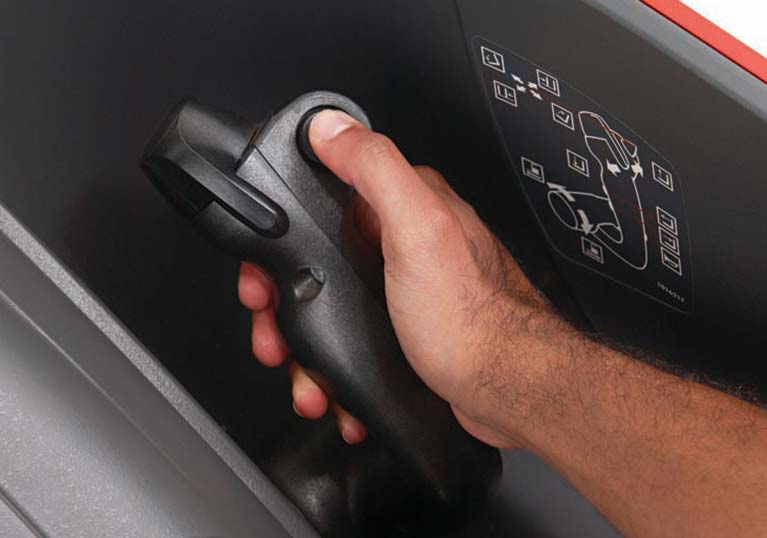

Single-axis Control Handle
Easy, intuitive and designed for comfort; provides simultaneous control of travel, lift, load handling and horn.
-

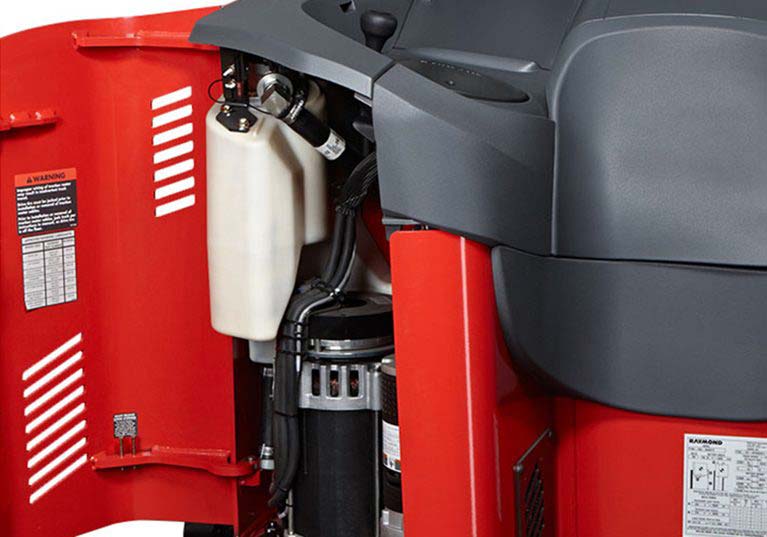

Ease of Access
Covers are easy to remove with components laid out intuitively for convenient access and simplified service. -

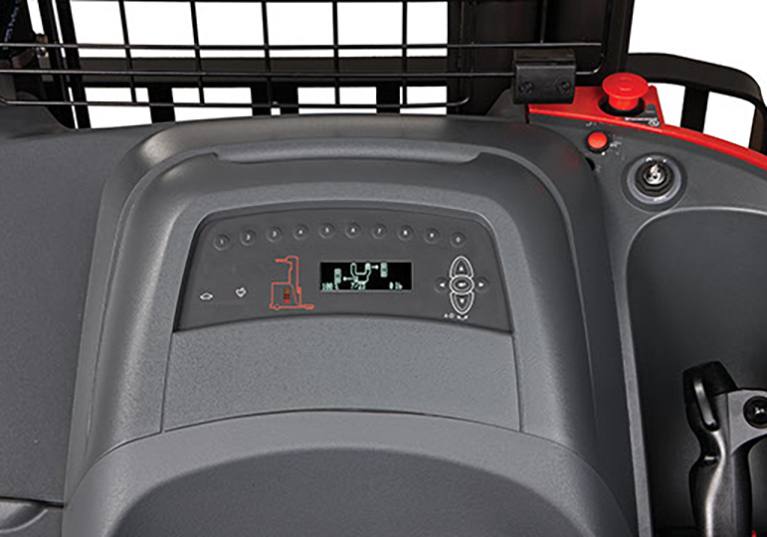

On-board Active Maintenance
Provides on-board diagnostics and self-checking capabilities, making it simpler to troubleshoot. -

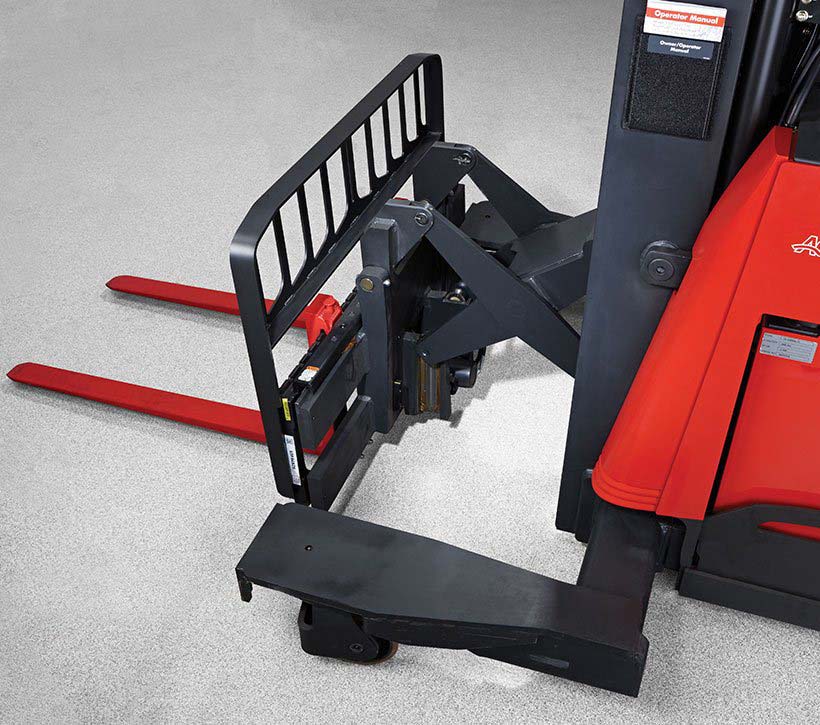

Rugged Reach Mechanism
Torsion tube scissor tie and anti-friction scissor are designed with radial thrust bearings to extend the life of the solid reach scissor mechanism.
-

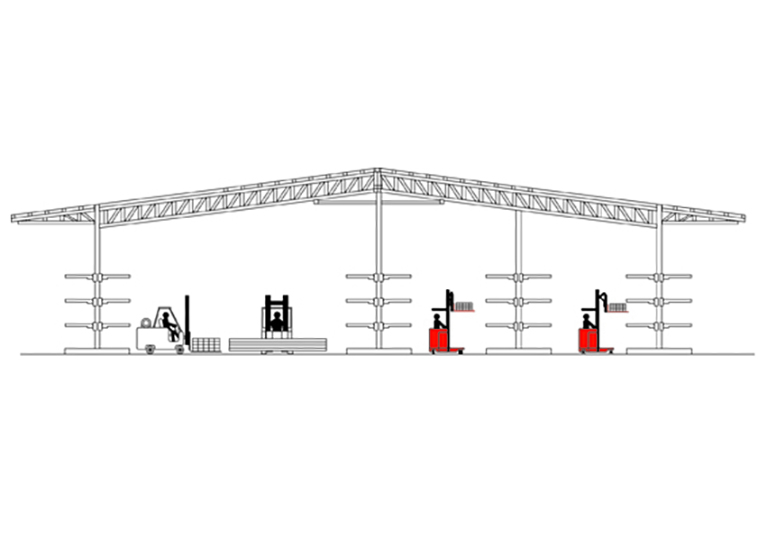

Increase Storage Capacity
The Raymond 4-Directional long load forklift allows up to 40% more storage by reducing aisle widths and eliminating the need for right-angle turns. -

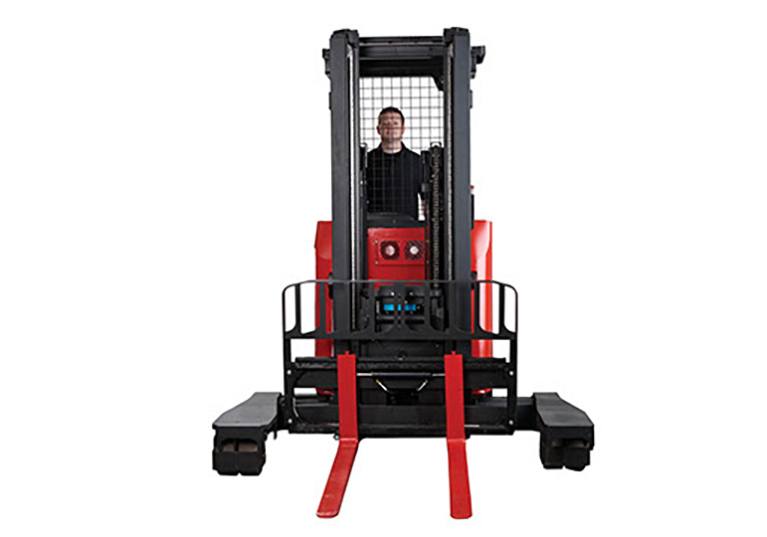

Open View Mast
Allows the operator to see the baselegs, load and rack. -
Speed and Acceleration
Delivers unmatched speed and acceleration, with precise torque control for fine maneuvering and travel over uneven floors.
-
Four-directional Capability
Lateral maneuverability, in addition to forward and rearward movement, allows for narrower aisles and aids operators in handling long, bulky loads with less damage. -
Performance for Each Operator
Programmable performance features allows managers to set truck performance to suit individual operator experience and training.
-

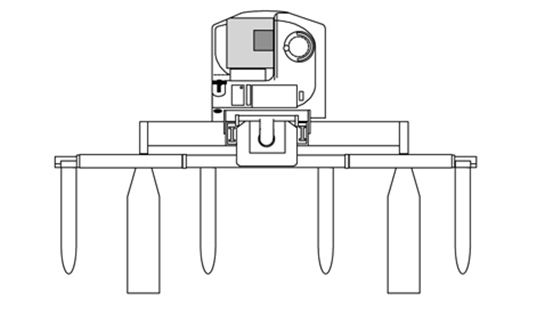

Auxiliary Carriage
Easily handle long, flexible loads needing additional support with the optional auxiliary fork carriage, available in widths from 8.5 feet to 15 feet overall. -

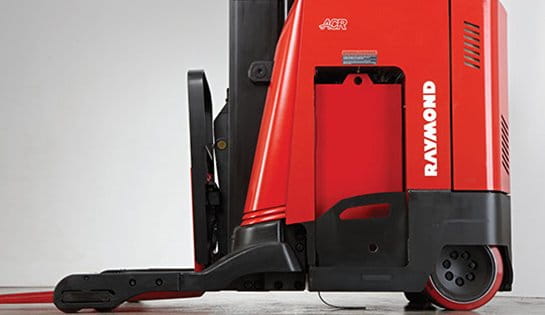

Battery Compartments
Choose from 16-inch, 18-inch or 21-inch battery compartment configurations to suit your application. -
Fork-tip Laser Guide
Assists operators for faster loading and unloading of pallets at height by providing a clearly visible laser guide on the pallet. -
Height-tilt Indicator
Digital readout shows height of forks and condition of tilt. Ideal for lift heights above 200-inches. -
Sideshift
Minimize time to position and stack loads closer together with the optional sideshift feature, which allows sideways movement of the carriage to enable the operator to better position a load or forks and also permits a load to be picked up even if it is not perfectly aligned with the truck. -
Vantage Point Camera
The color display monitor mounted in the operator’s compartment helps the operator to identify, place and retrieve pallets at greater heights.
-

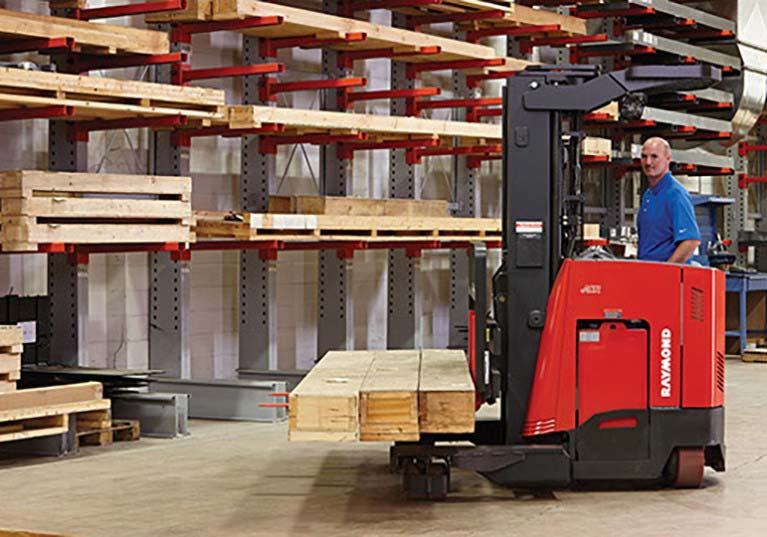

Long Load Handling
Whether you are handling bar stock, tubing, lumber or other long and bulky loads, the Raymond 4-D Reach-Fork truck can increase your storage space by up to 40%. With a wide range of trucks built for specific long load handling applications and innovations, Raymond makes it easy to maximize your space.
-
Palletless Handling
Whether you are moving carpeting, steel, or other palletless loads, Raymond has the answer. The 4-Directional Reach truck is one of several options Raymond offers to maximize space utilization, decrease damage to inventory and increase productivity with palletless handling.
-
Specialty Racks
The Raymond 4-D Reach truck can interface with every industry-standard warehouse rack. If you have selective, double deep, drive-in/drive-thru, cantilever, pallet flow or push back racks, Raymond has a solution that will help maximize your storage capacity and productivity.
-
Raymond 7310 4-Directional Reach Truck
See how the Raymond 4-D reach truck provides multi directional travel capability to allow operators to handle long, bulky loads in narrow aisles more precisely – resulting in less product, rack and equipment damage – and a lower cost of ownership for you. -
7000 Series Reach-Fork Trucks
Raymond 7000 Series Reach Trucks are designed with industry-leading lift, lower, acceleration and travel speeds – maximizing the number of pallets moved per hour. Whether your operators need to perform in high stacking applications, move from dock to stock areas or travel long distances in your warehouse, our reach trucks offer the right solution designed to keep your operator comfortable and operation moving. -
Vantage Point Camera System
With the Vantage Point option, a camera below the fork carriage delivers high-resolution images to a color monitor in the operator compartment. A clearly visible green reference line on the monitor shows the operator the position of the fork tips, enabling accurate retrieval.
