7500 Reach Truck Test Universal Stance Reach Forklift
-
-

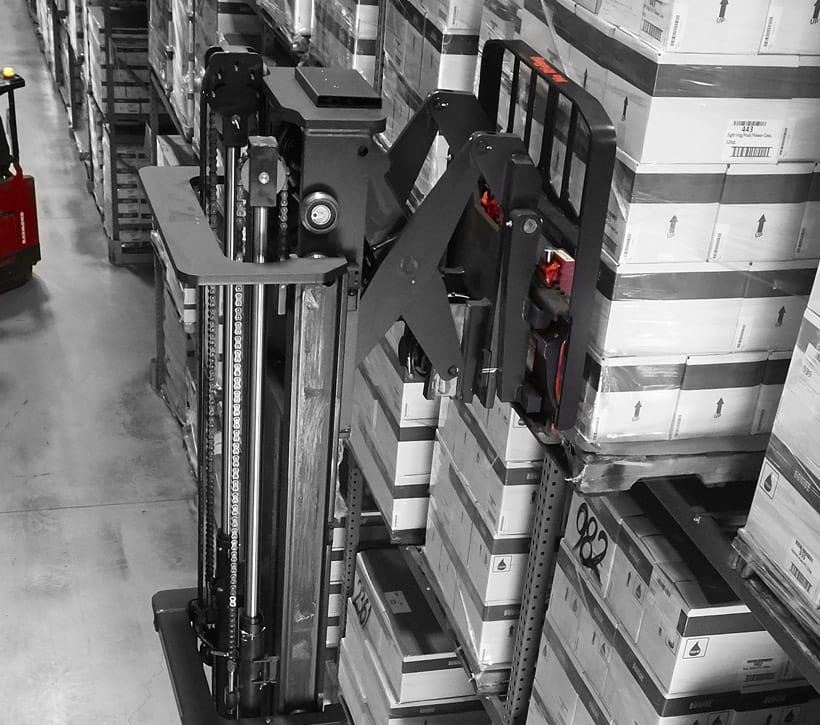

Load Stability at Height
Our unique steered idler and inertial dampener work together to provide the operator confidence when handling loads at height.Load Stability at Height -

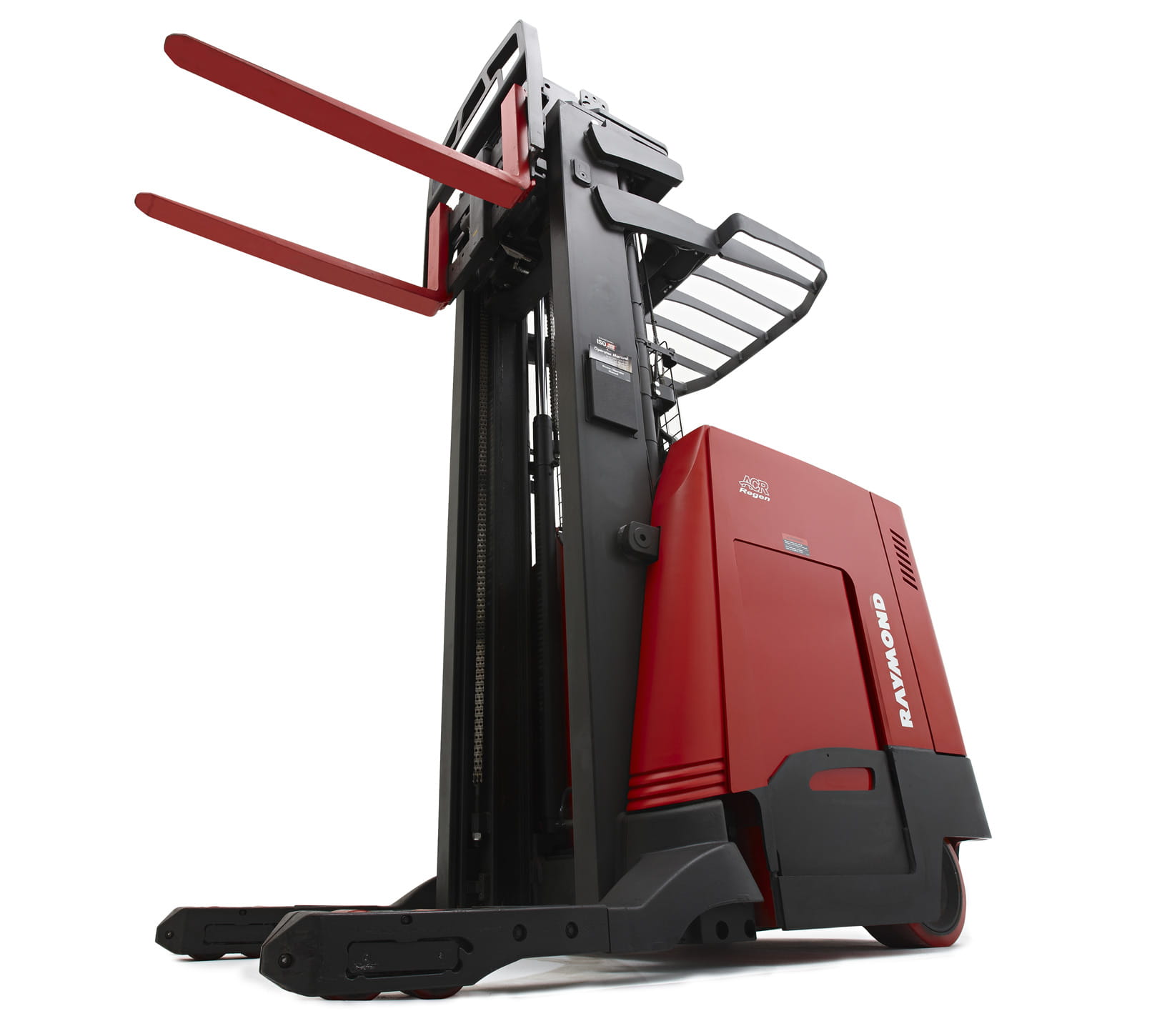

Universal Stance
With three operating positions, offers greater visibility and allows operators to face the task at hand.Universal Stance -
Patented Open View Mast
Provides superior visibility with a direct line of sight to the baselegs, load and rack.Patented Open View Mast -
Ductile Iron Baselegs
Ductile iron is 30% stronger and more durable than steel, ensuring reliable load support and enhanced strength and durability.Ductile Iron Baselegs -
Integrated Touchscreen Display
A suite of technologies and telematics built right into the control system of the truck.Integrated Touchscreen Display
Visibility in Every Direction
You can count on the Raymond 7500 Reach truck to work hard for you to increase selectivity and productivity. With our exclusive Universal Stance design and patented open view mast, the 7500 narrow aisle forklift provides greater visibility whether traveling or load handling, and is ideal for narrow aisle and high rack applications.
- Battery: 36 volts
- Capacity: 3,500 lbs. to 4,500 lbs.
- Elevated Height: 444" maximum
- Customized for Your Applications: Hundreds of configurations available to meet your specific needs
-
Lithium-ion BatteriesOur new offering of 24v and 36v lithium-ion batteries, compatible with our family of forklifts, showcases our dedication to advancement. These batteries are designed to seamlessly integrate into your lift trucks providing advanced data insights and wireless communication for remote diagnostics and upgrades.
Start Saving
Use our Lithium-ion ROI calculator to calculate the cost savings you could be receiving by switching to Lithium-ion batteries within your current fleet.
Built to Perform
-
Efficient by Design
In third-party testing, the 7500 Reach-Fork truck used as much as 21% less energy than competing models, resulting in fewer battery changes, more uptime and more pallets moved at a lower cost. -
Performance Without Compromise
By using less energy, you benefit from lower operational costs with reduced kWh usage and fewer carbon emissions. Additionally, less labor is spent changing batteries and more hours are spent moving product over the course of a shift. -
Regenerative Lowering
The 7500 reach truck creates power through regenerative lowering, which returns up to 10% of the used amps back to the battery when the truck is lowering a load, resulting in fewer battery changes and reduced downtime.
-
Productivity Is Driven by Acceleration
The ACR System provides industry-leading acceleration and deceleration. In third-party testing, the 7500 Reach-Fork truck delivered 9% faster cycle times than competing narrow aisle forklifts. -
Exclusive Steered Idler
Prevents caster snap, reducing the time it takes an operator to back away from a rack with a load at high elevations - making the most of uptime. -
Open View Mast
Greater visibility leads to increased productivity and operator confidence, fewer errors and less product, rack and facility damage.
-
Reduced Maintenance Requirements
Reduce downtime with advanced, on-board diagnostics that provide self-checking capabilities for simplified troubleshooting and scheduled maintenance intervals of 500 hours — twice that of competitors. -
Flex Circuit Technology
Easy-to-remove control handle with only 35 parts - 61% fewer parts than competing models - for less maintenance and lower costs. -
Bolt-on Wheel Plates
With floating articulation, allows for easy load-wheel replacement and improved ride quality.
-
Low Entry-step Height
Easier compartment entry helps operators avoid unnecessary, minimizing fatigue over the course of a shift. -
Single-axis Control Handle
Simultaneous function with intuitive vehicle controls that are easy to learn, for greater operator confidence and productivity. -
Spacious Compartment
Designed for operator comfort with wraparound, contoured padding, multiple lean points and cushioned floors.
-

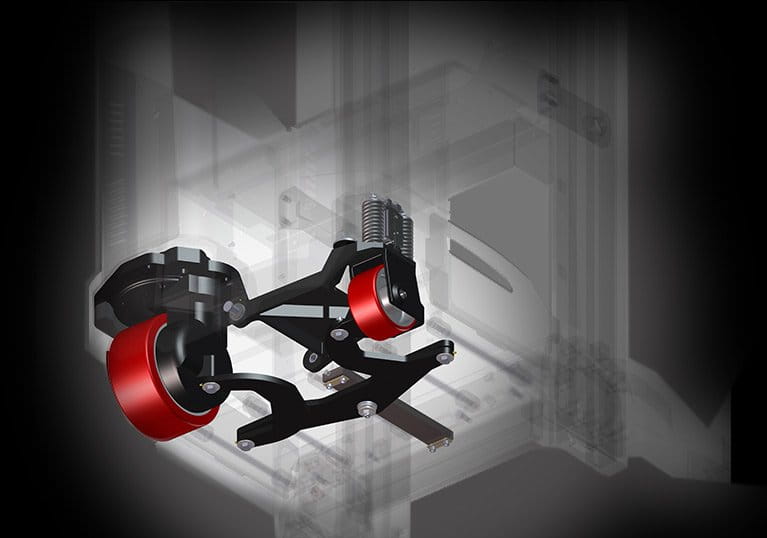

A-frame Suspension
Delivers smooth, precise handling with full-time traction and steering alignment. -
Steered Idler Design
Automatically aligns with the drive wheel to prevent caster snap and provides rock-solid stability at high elevations, increasing operator confidence. -
Unique Inertial Dampener
Shocks and sways are reduced before they reach the operator compartment - enhancing stability and operator performance.
-
Virtual Reality Simulator
Exclusive teaching tool that puts forklift operators on an actual reach truck in the most realistic virtual warehouse to improve skills, confidence, efficiency and retention. Eliminates the need for large dedicated training areas.
-
Fork-tip Laser Guide
Assists operators with faster loading and unloading of pallets at height by providing a clearly visible laser guide on the pallet.
-
Height-tilt Indicator
Digital readout shows height of forks and condition of tilt. Ideal for lift heights above 200 inches.
-
Operator Compartment Sensor System
Designed as a training aid to encourage proper operating procedures. Two light sensors span the entry to the operator compartment, sounding a tone and displaying a message on the operator's display when the sensors are blocked. If stationary, the truck will not travel if the light sensor is blocked.
-
Secondary Control Handle
Allows for increased visibility for all tasks no matter the direction of travel.
-
ThermaKit System
For cold storage warehouses, our padded, heated control handle and heated floor cushion keep your operators warm. By keeping hands and feet warmer for longer, ThermaKit enables improved productivity shift after shift.
-
Vantage Point Camera
The color display monitor mounted in the operator’s compartment helps the operator to identify, place and retrieve pallets at greater heights.
-
Cold Storage
Refrigerated warehouses, blast freezers and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions to test and prove our systems in extreme cycles of freezing and thawing.
-

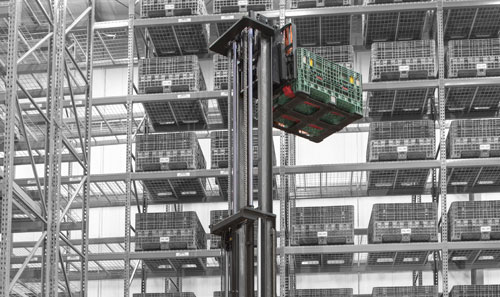

High Rack
The combination of Universal Stance operation and the open view mast make the 7500 Reach Truck an ideal fit for high-lift applications, providing operators with a clear line of sight to the baselegs, load and rack, as well as allowing for a variety of operating positions for enhanced comfort and productivity throughout a shift.
-
Narrow Aisle
With more than 200 combinations of heights, features and capacities, Raymond reach trucks for narrow aisle storage offer superior versatility and effective solutions to improve the utilization of your warehouse space.
-
Specialty Rack
The 7500 Reach-Fork truck can interface with every industry-standard warehouse rack. If you have selective, double deep, drive-in/drive-thru, cantilever, pallet flow or push-back racks, Raymond has a solution that will help maximize your storage capacity and productivity.
-
UL EE Applications
The 7500 reach truck complies with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are UL-tested and UL-certified and designed and manufactured to operate in classified locations as defined in the National Fire Protection Association's NFPA 505.
-
7000 Series Reach-Fork Trucks
Raymond 7000 Series Reach Trucks are designed with industry-leading lift, lower, acceleration and travel speeds – maximizing the number of pallets moved per hour. Whether your operators need to perform in high stacking applications, move from dock to stock areas or travel long distances in your warehouse, our reach trucks offer the right solution designed to keep your operator comfortable and operation moving.
-
Celebrating 65 Years of the Raymond Reach Truck
Raymond pioneered narrow aisle with the invention of the first narrow aisle forklift in 1951. For 65 years, we’ve continuously innovated the reach forklift—from the introduction of AC technology into electric forklifts to the industry's first integrated operator display—to give our customers the best reach trucks in the industry.
-
Vantage Point Camera System
With the Vantage Point option, a camera below the fork carriage delivers high-resolution images to a color monitor in the operator compartment. A clearly visible green reference line on the monitor shows the operator the position of the fork tips, enabling accurate retrieval.
