7530 WCB High Capacity Reach-Fork Truck Narrow Aisle Forklift
-
-

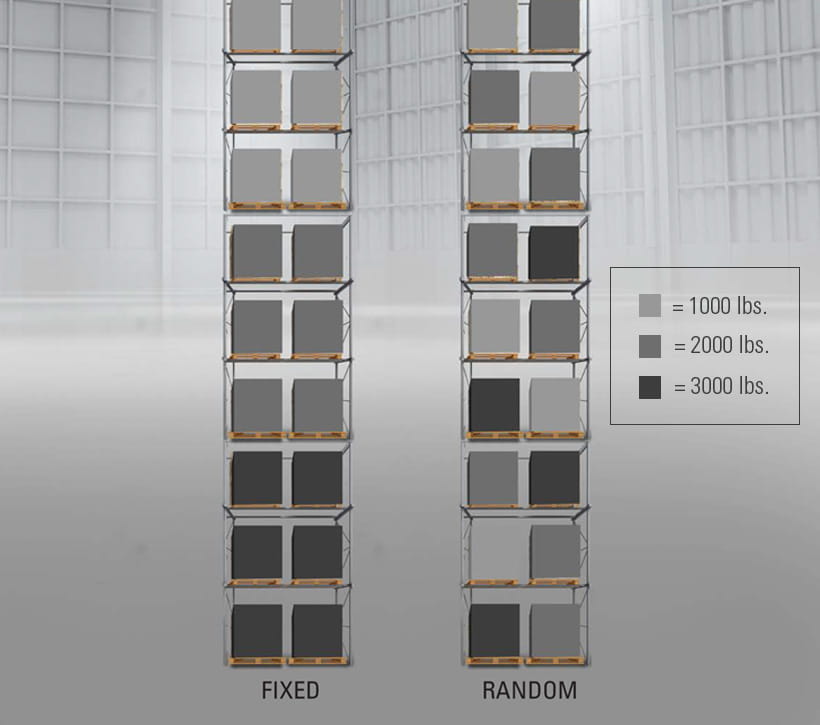

Greater Storage Flexibility
Capable of lifting full pallets to top beam, and 2,000 lbs. to 505" (Single/Deep-Reach) allows flexible pallet storage.Greater Storage Flexibility -
Better Visibility & Operator Comfort
Universal Stance allows operators to face forward and look directly at rack, increasing operator comfort and visibility at height.Better Visibility & Operator Comfort -

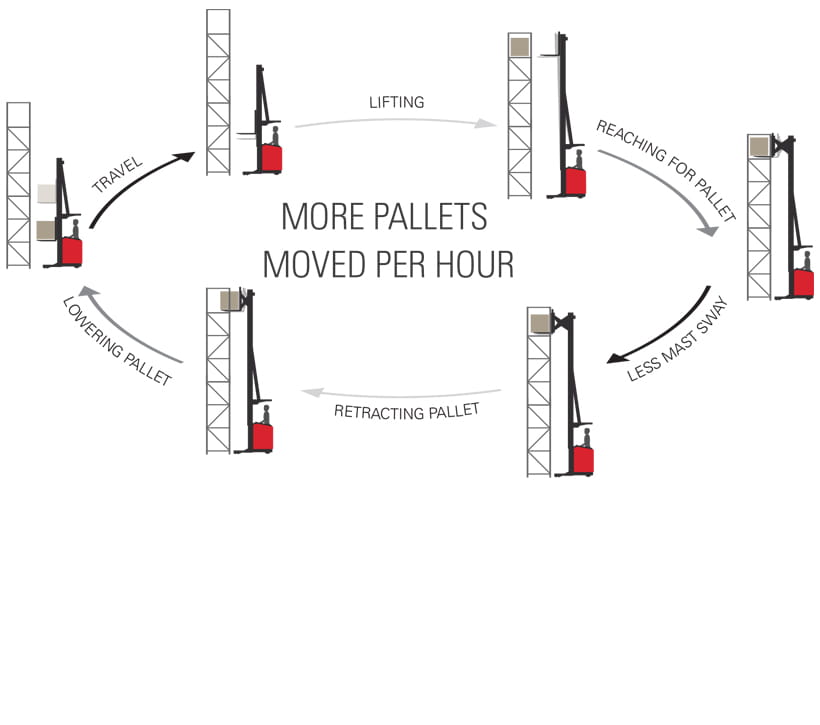

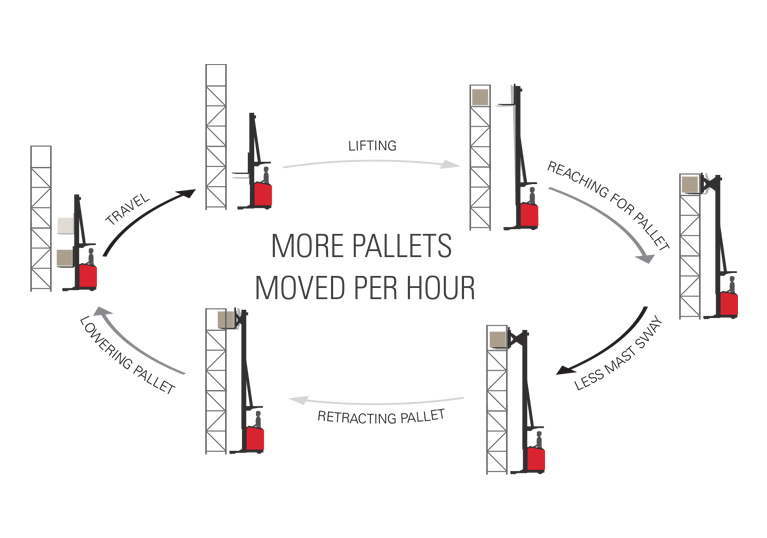

15% Faster Cycle Times
Independent third party testing found the 7530 reach truck to have 15% faster cycle times for more pallet moves per hour.15% Faster Cycle Times -
Load Stability at Height
Unique stability system, including a 4-point stability design and heavy duty mast frame, reduces lateral movement when lifting heavy loads at height.Load Stability at Height -

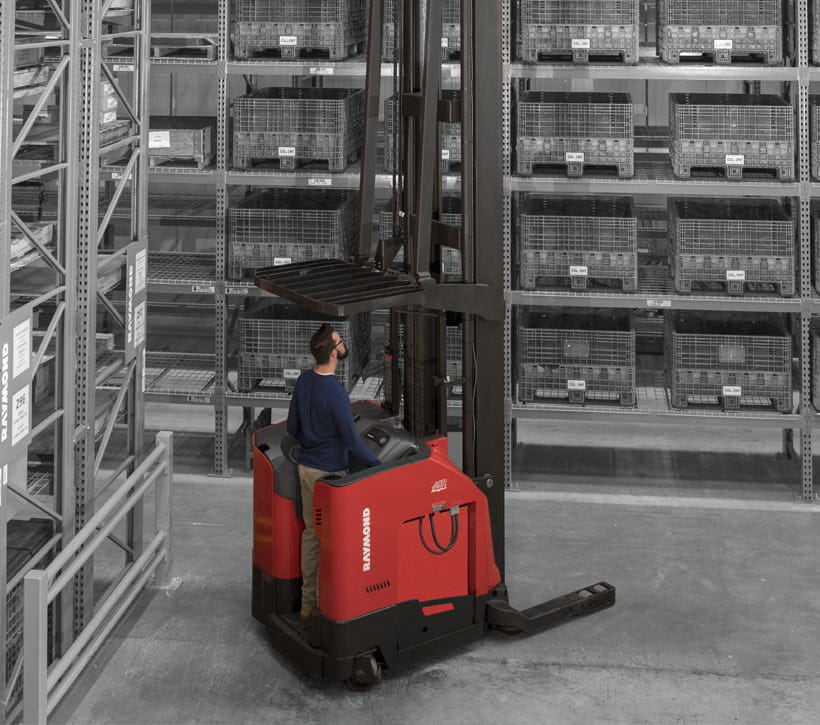

More Uptime with Greater Reliability
Engineered with fewer and more durable parts, minimizes and simplifies maintenance.More Uptime with Greater Reliability

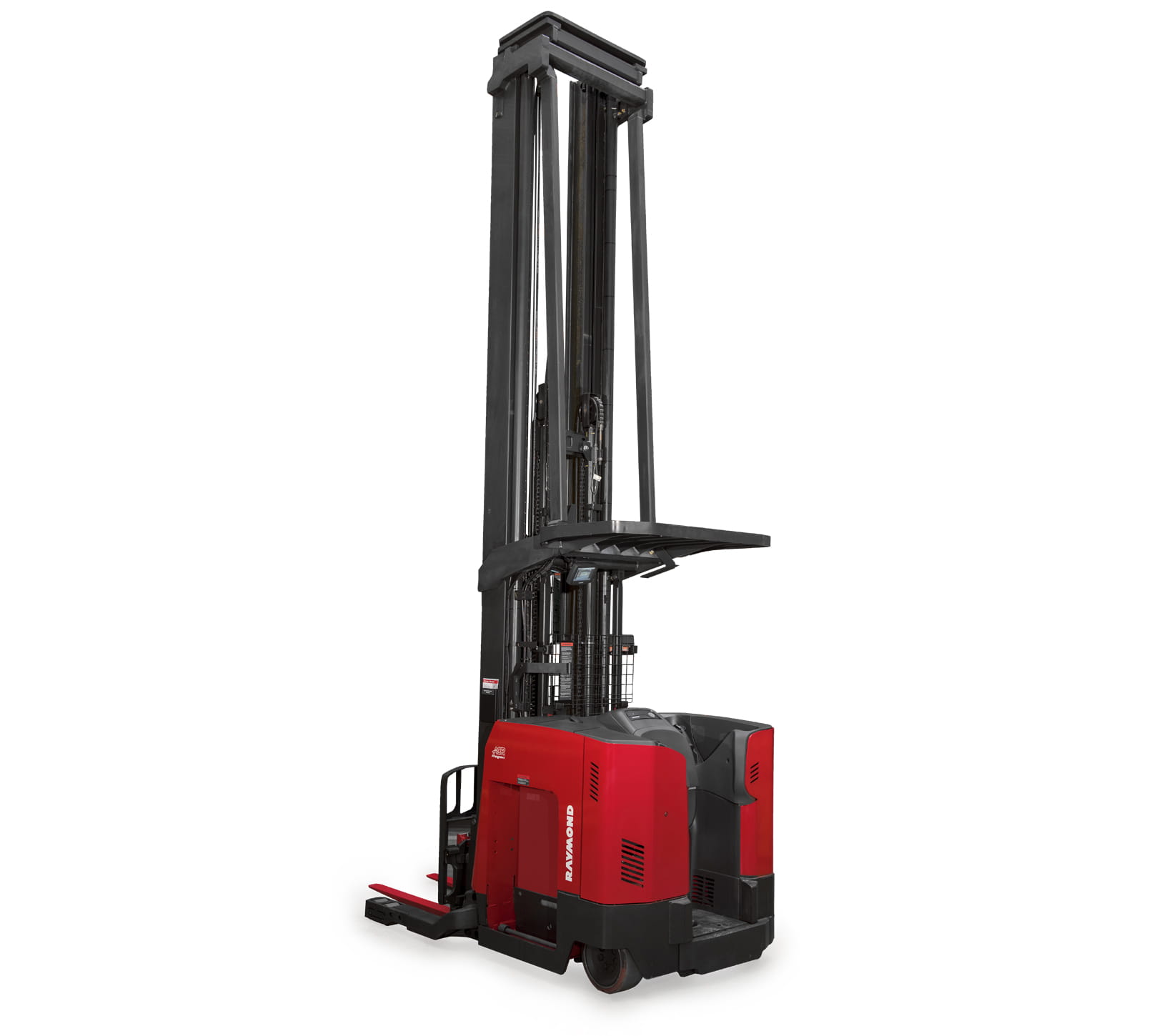

Highest. Heaviest. Fastest.
The Raymond High Capacity Reach-Fork truck offers the highest lift heights, heaviest capacities and fastest cycle times, providing greater capacity retention and improved cube utilization.- Battery: 36 volt
-
Capacity:
4,500 lbs.
Capable of lifting 2,000 lbs. to 505" (Single/Deep-Reach) - Elevated Height: 542" maximum
- Baseleg Opening: 41", 42" and 45"
- Customized for Your Application: Hundreds of configurations available to meet your specific needs
Built to Perform
-
Faster Cycle Times
ACR System delivers quicker acceleration and electronic braking, faster lift and lower speeds, and smooth directional changes for 15% faster cycle times than competitive trucks. -
Superior Load Handling
Exclusive Steered Idler prevents caster snap, reducing the time it takes an operator to back away from a rack with a load at high elevations. -
Greater Visibility
Patented Open View Mast provides superior visibility for increased productivity and operator confidence, fewer errors and less product, rack and facility damage.
-
Energy Conscious System
ACR Control System provides faster speeds and smoother operations to assist in moving more pallets efficiently and economically. -

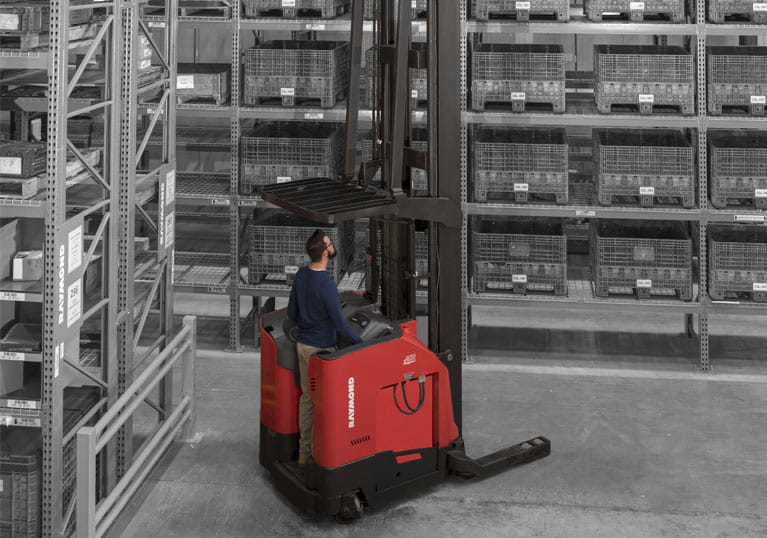

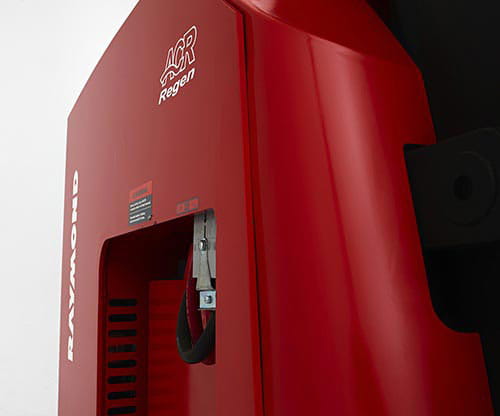

Regenerative Lowering
7530/7730 reach trucks create power through regenerative lowering, returning amps back to the battery when the truck is lowering a load, resulting in fewer battery changes and reduced downtime. -
Efficient Design
A larger displacement pump optimizes the motor for longer battery shift life so trucks stay on the floor longer.
-
Smooth Operation
Inertial Dampener reduces shocks and sways before they reach the operator compartment—enhancing stability and operator performance. -
Precise Pallet Handling
A-Frame Suspension delivers smooth, precise handling with full-time traction and steering alignment. -

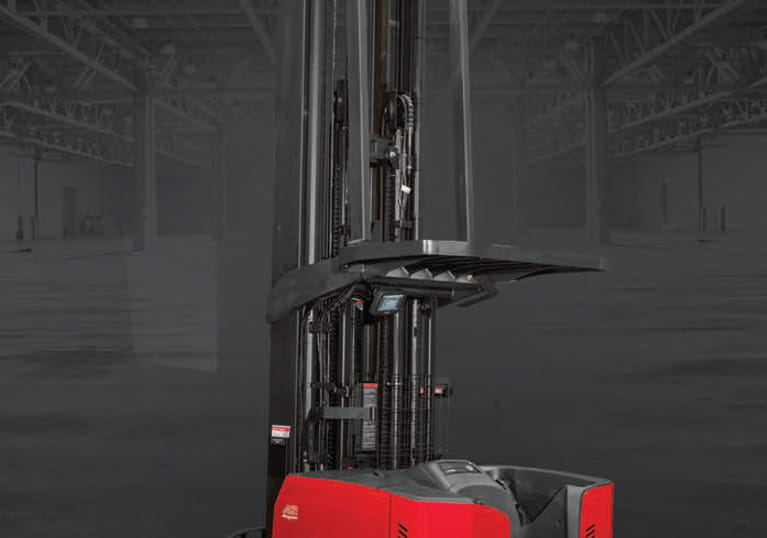

Greater Confidence at Height
Heavy duty mast frame offers vertical stability when lifting heavier loads to higher heights for less mast sway and greater operator confidence.
-

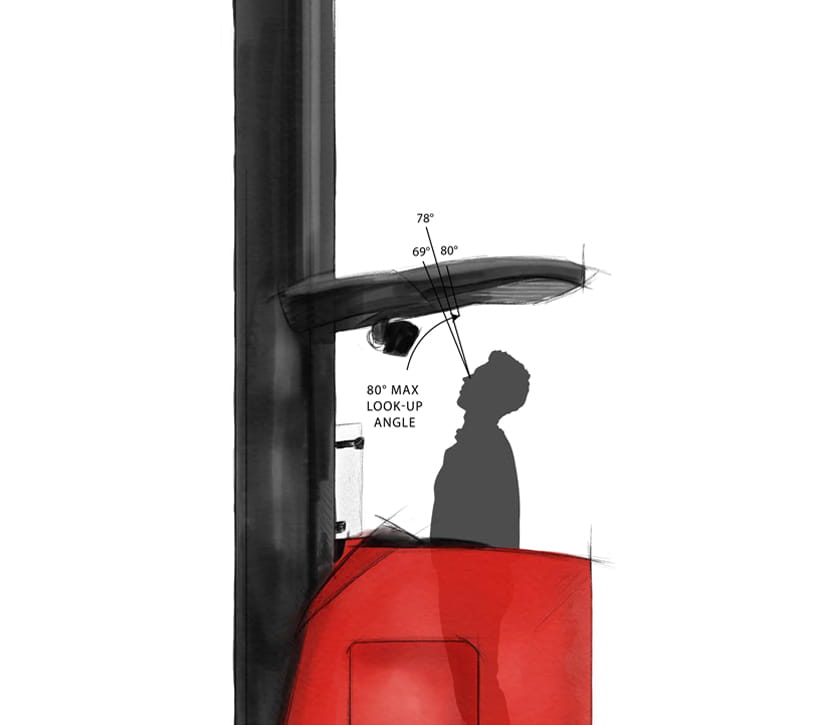

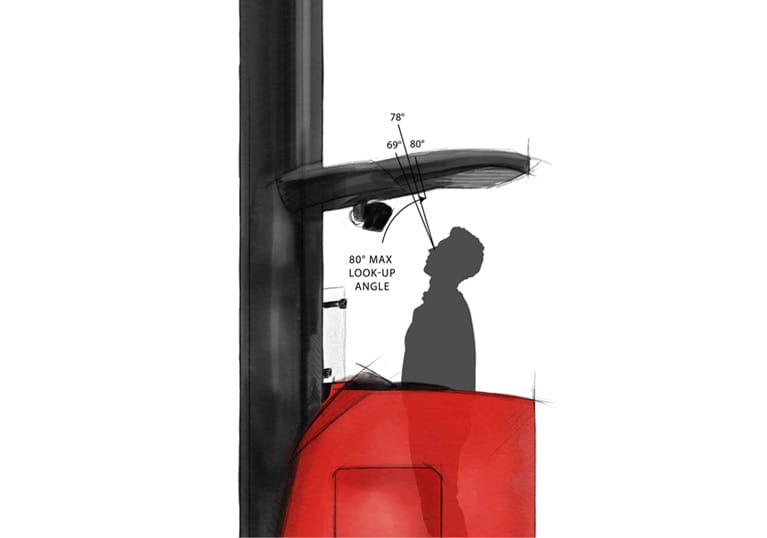

Superior Visibility and Comfort
Universal Stance allows the operator to face forward and look straight up at loads providing more operator comfort when working in high racking applications. -
Intuitive, Easy-to-Learn Controls
Single-axis control handle provides simultaneous function with intuitive vehicle controls that are easy to learn for greater operator productivity. -

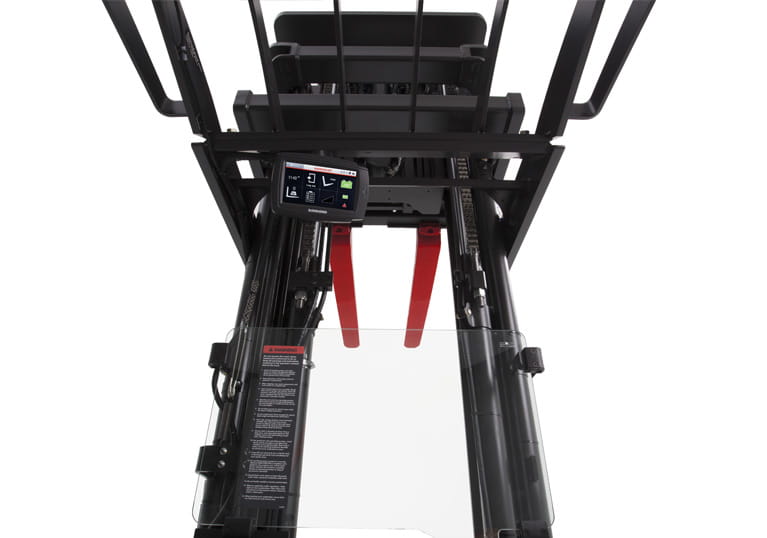

Simple, Intuitive Operation
A single 7" Multifunction Color Touchscreen Display consolidates vehicle systems into one monitor and makes truck information readily available and easily visible for greater visibility and usability.
-
Easier Maintenance
Bolt-on wheel plates with floating articulation, allows for easy load-wheel replacement and improved ride quality. -

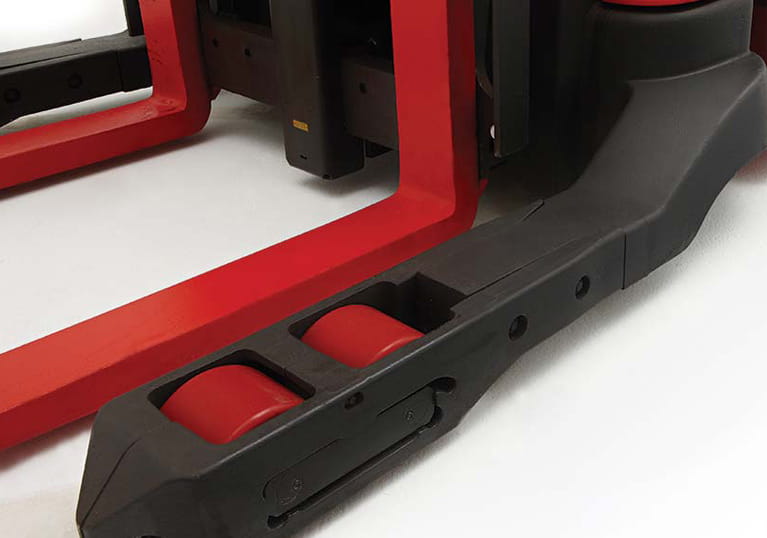

Greater Durability and Reliability
Baselegs made from ductile iron, which is 30% stronger and more durable than steel, enhances strength and durability for reliable load support. -
Fewer Parts and Better Components
Easy-to-remove control handle with only 35 parts —61% fewer parts than competing models—for less maintenance and lower costs.
-
Vantage Point Camera
The color display monitor mounted in the operator’s compartment helps the operator to identify, place and retrieve pallets at greater heights. -
Fork-tip Laser Guide
Assists operators for faster loading and unloading of pallets at height by providing a clearly visible laser guide on the pallet. -
Height-tilt Indicator
Digital readout shows height of forks and condition of tilt. Ideal for lift heights above 200 inches. -
ThermaKit System
For cold storage warehouses, our padded, heated control handle and heated floor cushion keep your operators warm. By keeping hands and feet warmer for longer, ThermaKit enables improved productivity shift after shift. -
Operator Compartment Sensor System
Designed as a training aid to encourage proper operating procedures. Two light sensors span the entry to the operator compartment, sounding a tone and displaying a message on the operator's display when the sensors are blocked. If stationary, the truck will not travel if the light sensor is blocked.
-
Cold Storage
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions to test and prove our systems in extreme cycles of freezing and thawing.
-
Narrow Aisle
With more than 200 combinations of heights, features and capacities, Raymond Reach trucks for narrow aisle storage offer superior versatility and effective solutions to improve the utilization of your warehouse space.
-

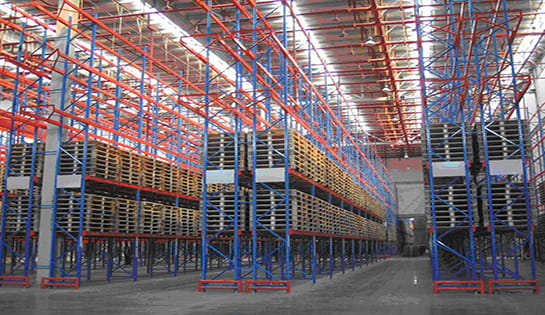

Specialty Rack
Raymond 7000 Series Reach-Fork trucks can interface with every industry-standard warehouse rack. If you have selective, double deep, drive-in/drive-thru, cantilever, pallet flow or push-back racks, Raymond has a solution that will help maximize your storage capacity and productivity.
-
UL EE Applications
Raymond 7000 Series Reach-Fork trucks comply with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are UL-tested and UL-certified and designed and manufactured to operate in classified locations as defined in the National Fire Protection Association's NFPA 505.
-
Raymond High Capacity Reach Truck – Reach Higher and Lift Heavier
The Raymond High Capacity Reach Trucks are designed to provide greater storage and slotting flexibility for lower costs. With the highest reach in the industry, our trucks let you increase the height of your racking to optimize your storage capacity without increasing your footprint. -
Raymond High Capacity Reach Trucks – Lower Your Cost Per Pallet Stored
With the highest reach in the industry, Raymond High Capacity Reach Trucks let you increase the height of your racking to optimize your storage capacity without increasing your footprint; lowering your overall cost per slot. -
Raymond High Capacity Reach Truck at ProMat 2019
Susan Comfort, Product Manager of Narrow Aisle Solutions, explains the benefits of the Raymond High Capacity Reach Truck and combating space restraints within your warehouse. -
7000 Series Reach-Fork Trucks
Raymond 7000 Series Reach Trucks are designed with industry-leading lift, lower, acceleration and travel speeds – maximizing the number of pallets moved per hour. Whether your operators need to perform in high stacking applications, move from dock to stock areas or travel long distances in your warehouse, our reach trucks offer the right solution designed to keep your operator comfortable and operation moving. -
Celebrating 65 Years of the Raymond Reach Truck
Raymond pioneered narrow aisle with the invention of the first narrow aisle forklift in 1951. For 65 years, we’ve continuously innovated the reach forklift—from the introduction of AC technology into electric forklifts to the industry's first integrated operator display—to give our customers the best reach trucks in the industry. -
Vantage Point Camera System
With the Vantage Point option, a camera below the fork carriage delivers high-resolution images to a color monitor in the operator compartment. A clearly visible green reference line on the monitor shows the operator the position of the fork tips, enabling accurate retrieval.
