6210 Walkie Pallet Stacker Walkie Straddle Truck
-
-
Click2Creep
Allows operation with the handle tucked tightly to the tractor for superior maneuverability.Click2Creep -
Ductile Iron
Supports the AC drive motor and has nearly twice the strength with greater resiliency than low-carbon steelDuctile Iron -
Snap Fit Polycarbonate Covers
Secure without screws making it quick and easy to service the truckSnap Fit Polycarbonate Covers -

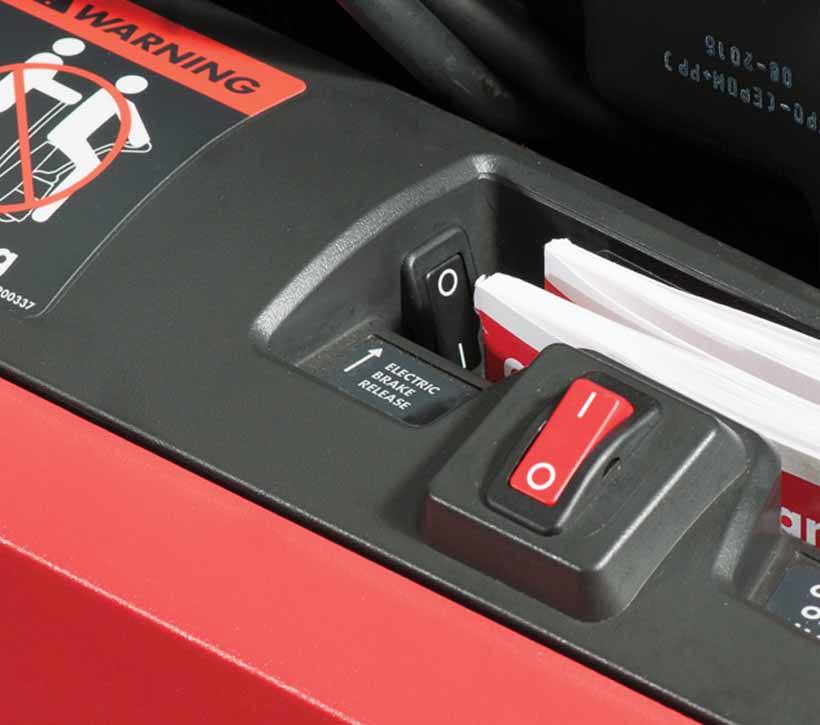

Electric Brake Release
Releases the brake during low battery conditions without having to remove the covers.Electric Brake Release -
Ergonomic Control Handle
With dual throttle controls that are easy to learn and operate.Ergonomic Control Handle
Right-Sized and Practical Versatility.

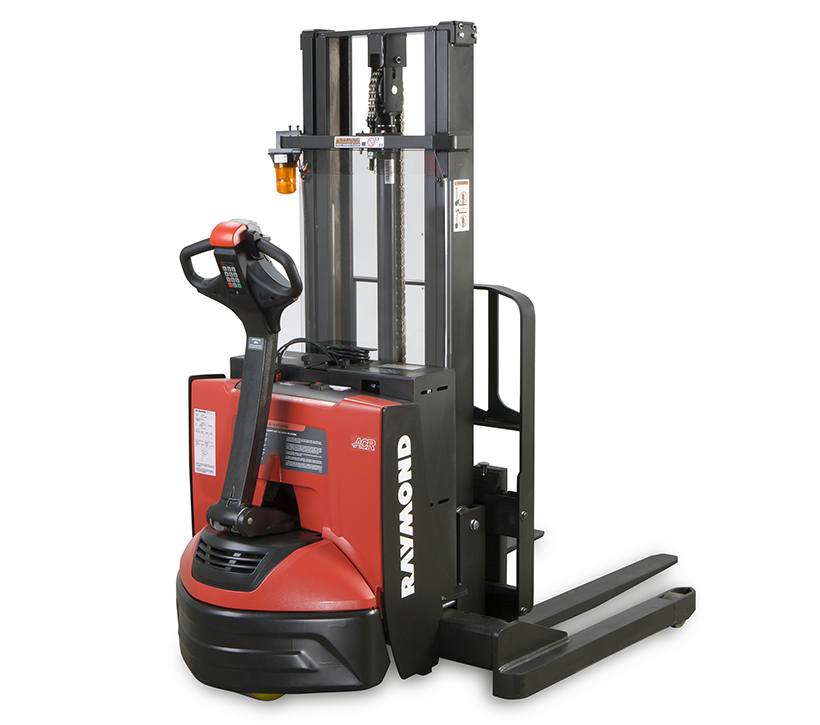

The Raymond 6210 Walkie Pallet Stacker features an adjustable baseleg design that makes it a smart, economical solution for moving multiple pallet sizes. The 6210 walkie straddle truck enables operators to maneuver multiple-sized pallets quickly and easily in tight quarters. The 6210 stacker truck allows you to better utilize your vertical storage, off-load pallets from the end or sides of trailers and navigate in tight spaces with smooth, precise control – ideal for retail store, light-duty manufacturing and dock to stock applications.
- Battery: 24 volt
- Capacity: 2,000 lbs and 2,500 lbs
- Elevated Height: 143" maximum
-

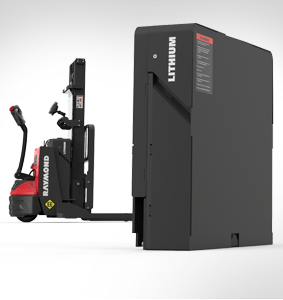

Lithium-ion BatteriesOur new lithium-ion battery, compatible with the 6210 showcases our dedication to advancement in alternative energy solutions. These batteries are designed to seamlessly integrate into your lift trucks providing numerous benefits including longer runtime, quicker recharge time, increased performance and decreased cost of ownership.
Start Saving
Use our Lithium-ion ROI calculator to calculate the cost savings you could be receiving by switching to Lithium-ion batteries within your current fleet.
Built to Perform
-

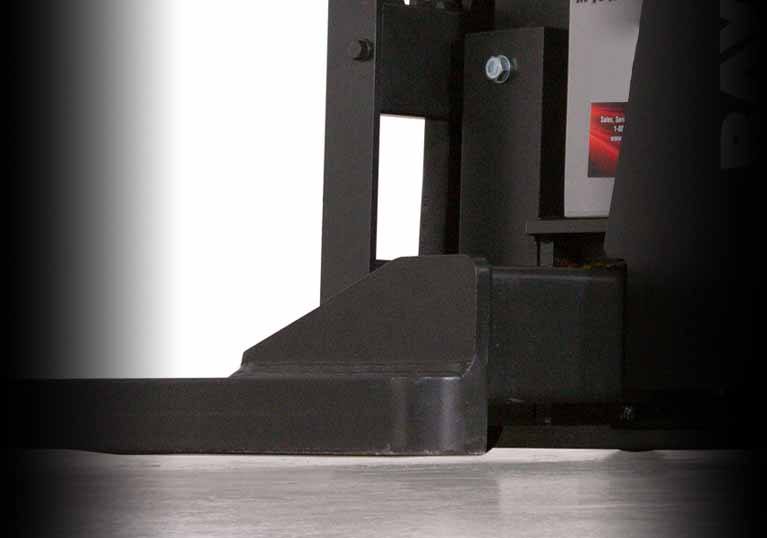

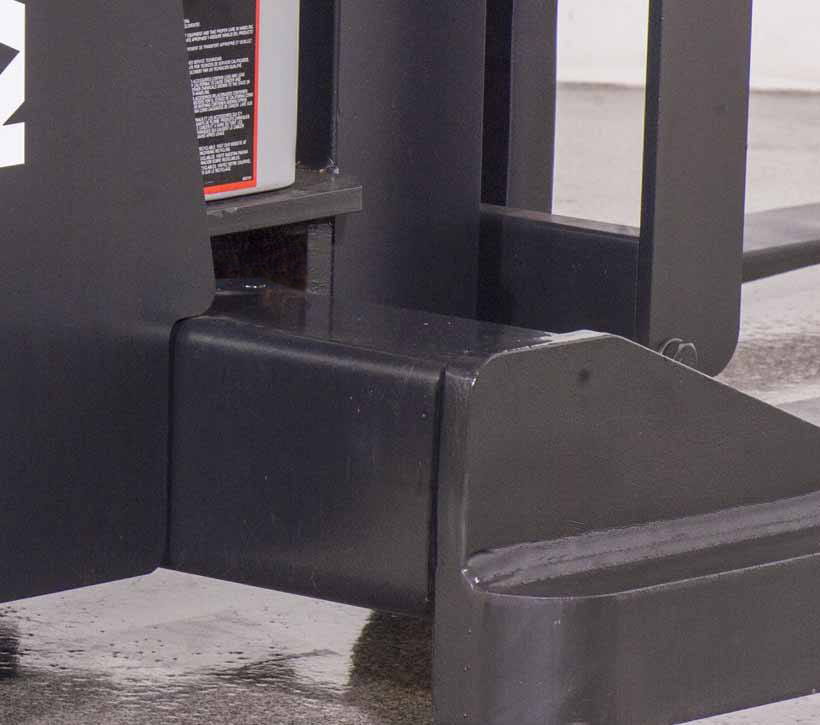

Ductile Iron
Ductile iron in the frame supports the drive motor with almost twice the yield strength of steel. Ductile iron bell cranks and wheel forks provide a more durable undercarriage construction. -

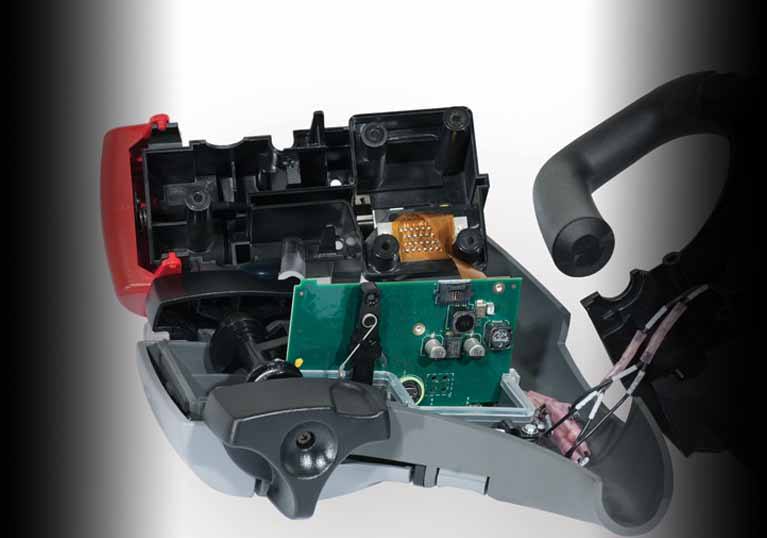

IP65 Electronics Protection
IP65 protection to electronics with sealed contactors, connectors, controllers and cabling means that the 6210 walkie straddle stacker can take a pressure washing and still reliably perform. -

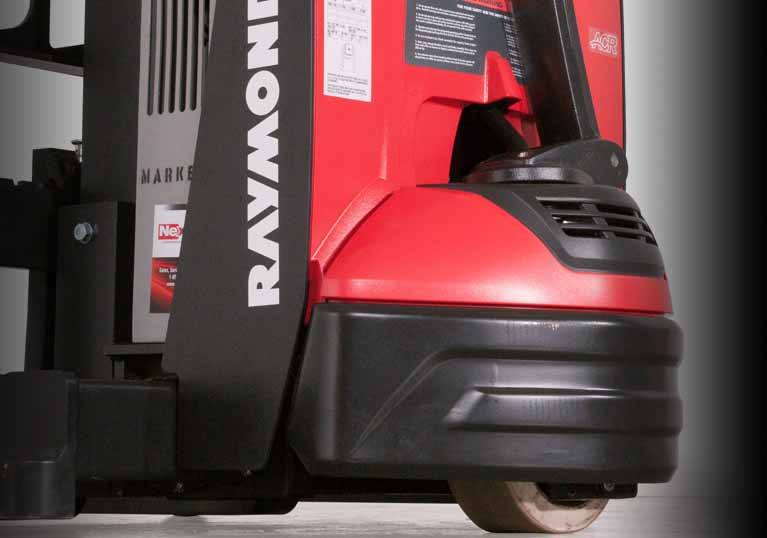

High Strength Low Alloy (HSLA) Bumper
HSLA is commonly used in automotive truck frames, and tests at 3 times greater strength and durability over competitive bumpers - but weighs considerably less - to help maintain the efficiency of the Raymond 6210 walkie pallet stacker truck.
-

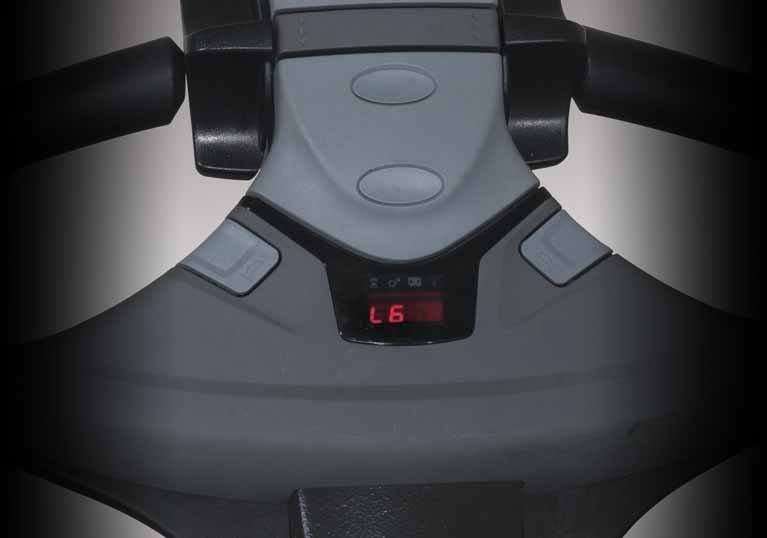

Fully Programmable
Programmable performance parameters let managers customize truck performance to fit the work environment and operator needs. -

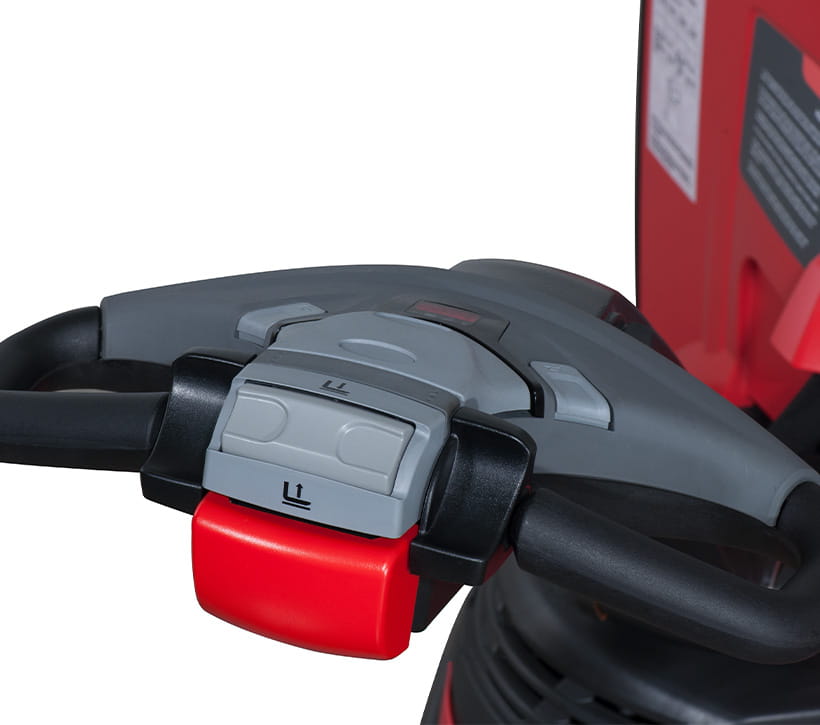

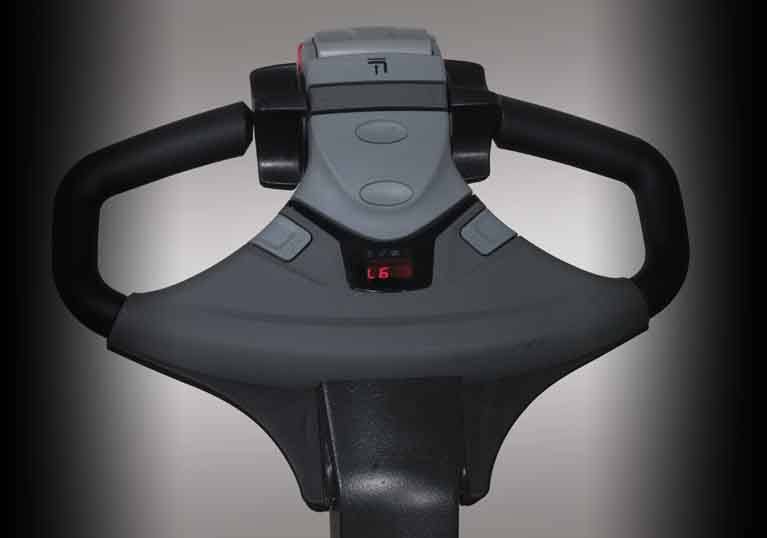

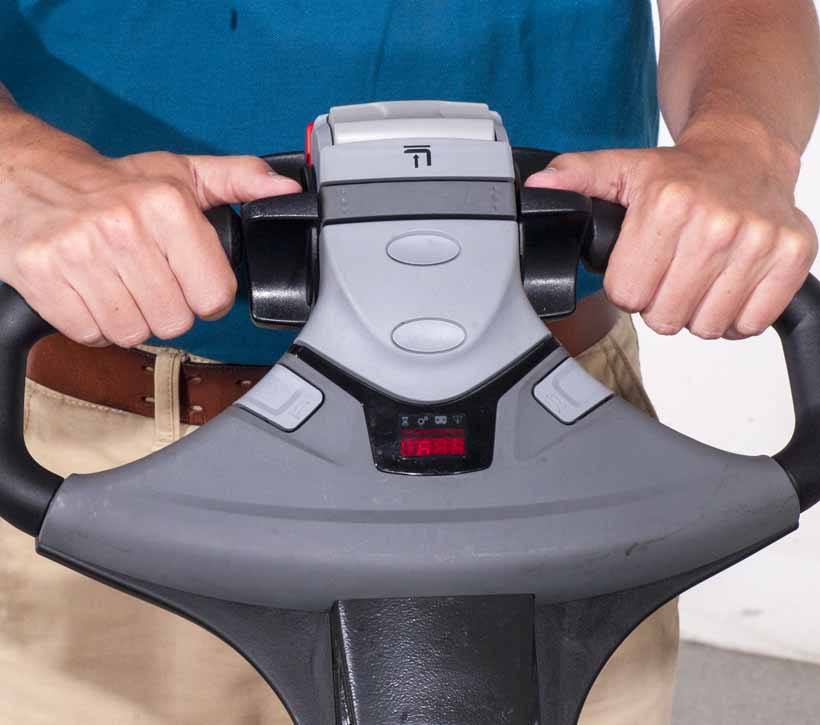

Handle
Raymond's ergonomically contoured handle features easy‐to‐reach controls that are intuitive to learn and operate. -

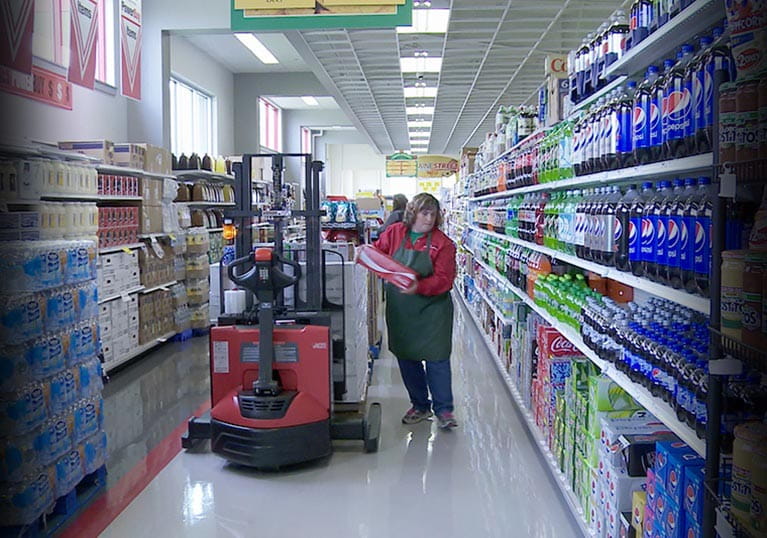

Waist High Fork Positioner
This convenient feature allows operators to ergonomically position loads at waist height to reduce bending and lifting.
-

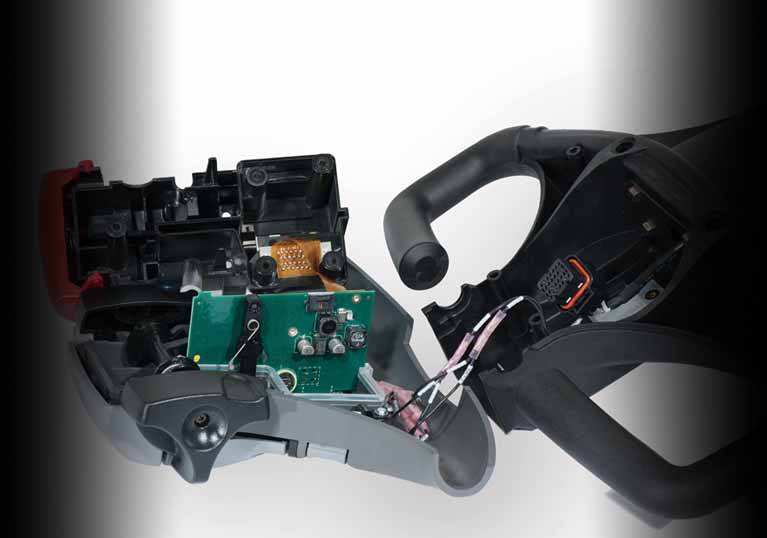

CAN bus Technology
CAN bus technology reduces wiring in the handle by 40%, and hall effect sensors replace potentiometers, so parts never touch or wear. -

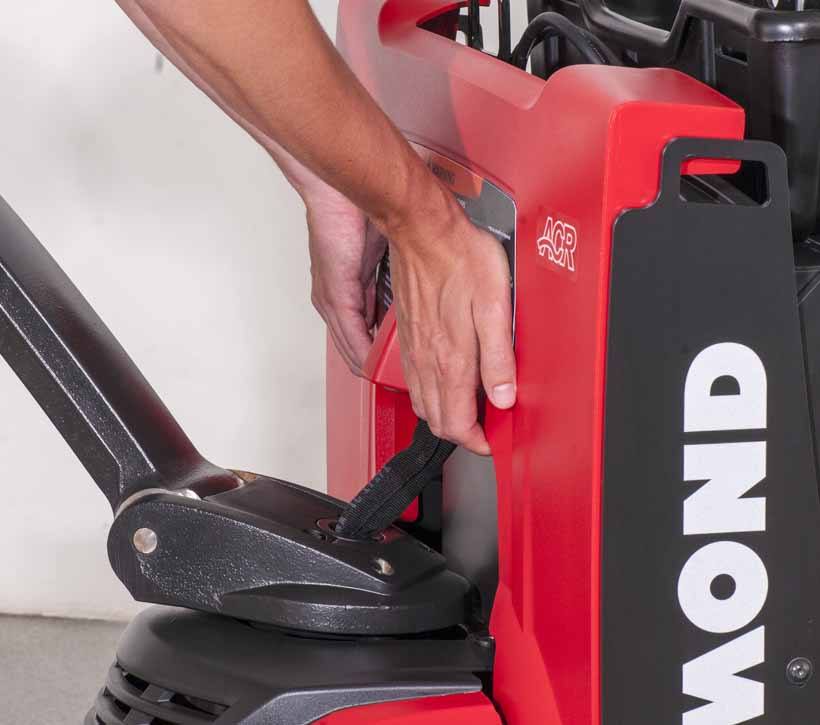

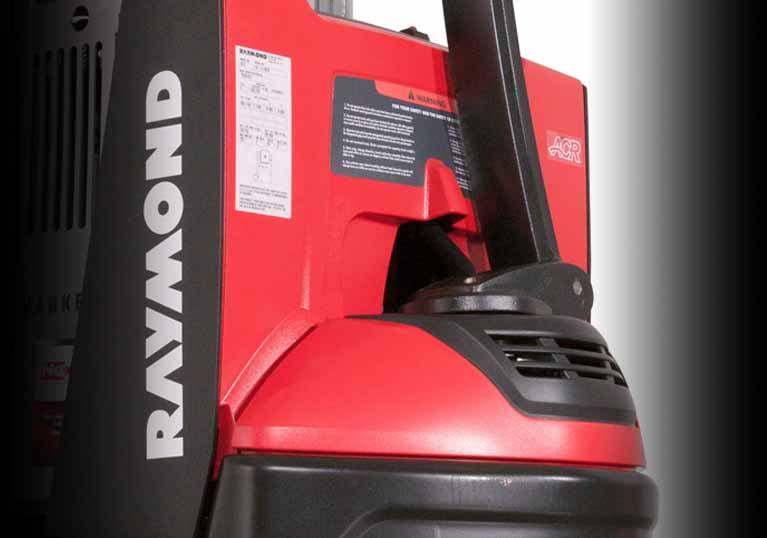

Snap-Fit Polycarbonate Covers
Secure without screws, making it quick and easy to service the truck.
-

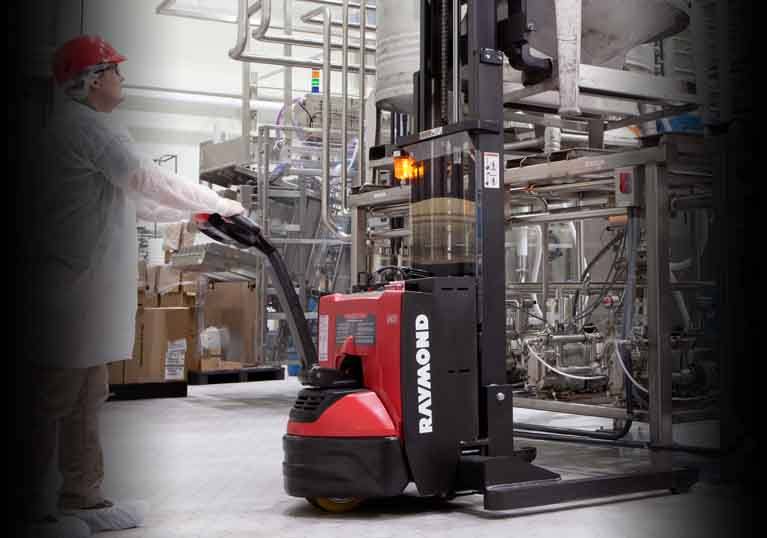

AC Traction Control
Provides seamless speed transitions, allowing the operator the control needed to smoothly move the truck one inch at a time. -

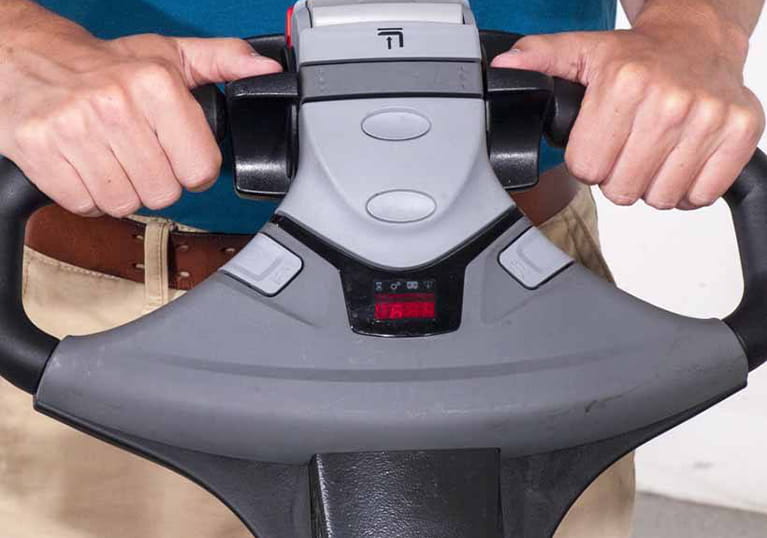

Click2Creep
Raymond's exclusive Click2Creep feature provides unmatched maneuverability. Click2Creep automatically reduces travel speed and allows the truck to be operated with the handle tucked tightly to the tractor for pinwheeling in trailers, and providing superior maneuverability at a slower, controlled speed. -

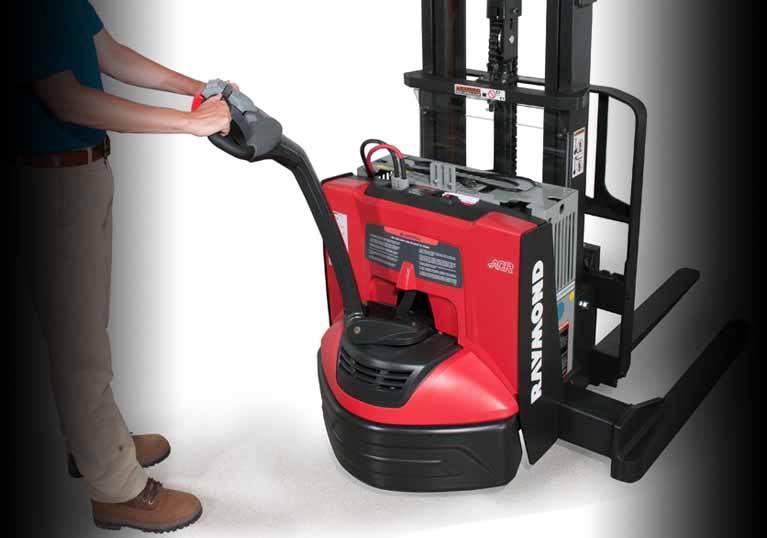

Static Torque Control
With static torque control, the 6210 walkie pallet stacker separates speed from torque, giving operators the power they need to maneuver the truck over dockplates, curbs and uneven floors with smooth, controlled operation at all speeds.
-

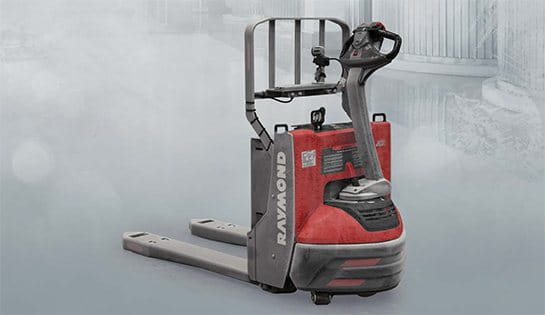

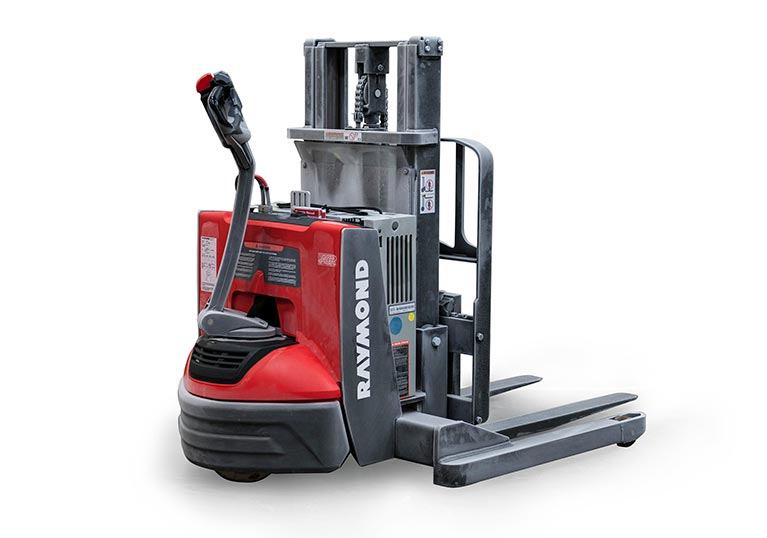

Cold Storage Conditioning
This optional package includes all temperature hydraulics, transmission oils and temperature sensing components to protect control systems — assuring peak performance and productivity, while stainless steel undercarriage pins protect from corrosion and rust. -

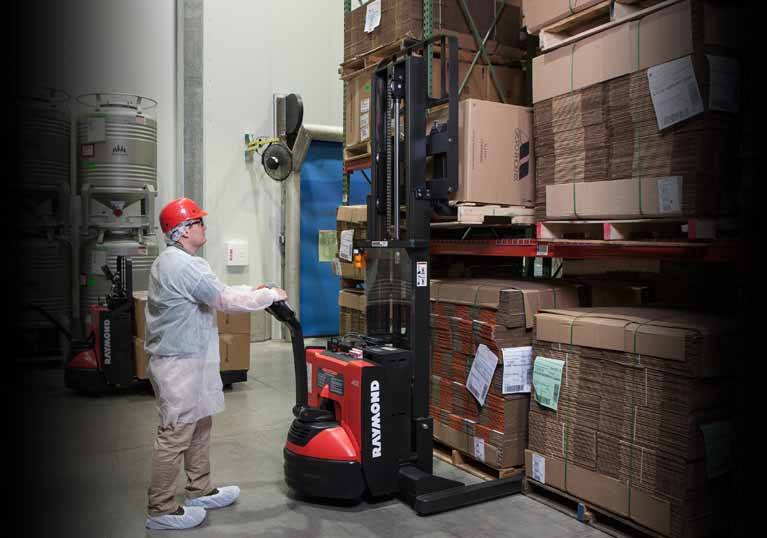

Dock to Stock Support
Use one truck to off-load pallets from the end or sides of trailers, deliver product to storage or retail shelves, put product away in racking and move or stage work-in process on the manufacturing floor. -

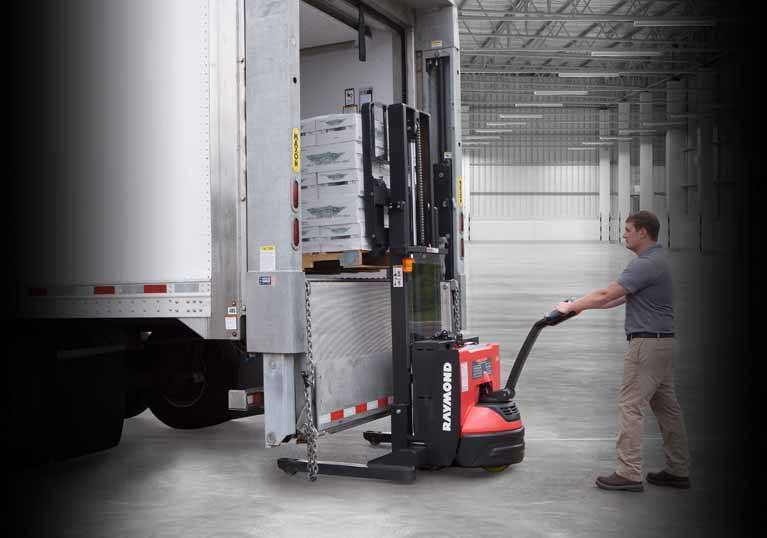

Unloading Trailers
No dock? No problem. With IP65 protection to electronics from water and moisture, you can count on the hardworking, reliable 6210 walkie stacker to load and unload trailers.
-

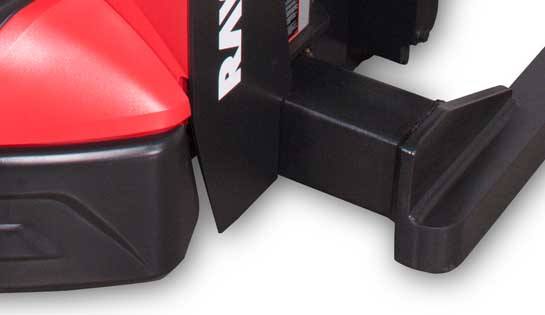

Adjustable Baselegs
Standard fixed straddle baselegs are available in 1” increments from 31” to 54”. Optional adjustable baselegs are available to fit a wide range of pallet sizes. -
Cold Storage Conditioning
All temperature hydraulics, transmission oils and temperature sensing components protect control systems — assuring peak performance and productivity in temperatures as cold as -20 degrees. -
Accessory Bar
The optional accessory bar interfaces with RAM-mounted accessories to put additional operator tools at their fingertips; available with optional work light and fan. -
Pin Code Pad
The optional pin code pad provides password protection for additional security. Store up to 10 different passwords to prevent unauthorized operation. -
Storage Tray
The optional storage tray helps to keep work tools organized and at your operators fingertips for added convenience and productivity throughout the shift. -

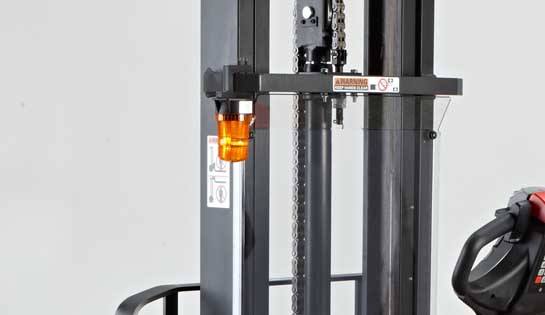

Warning Lights
Environments with high levels of ambient noise may find it difficult to hear the horn when sounded. In these applications, the warning light option may assist in making other workers aware of the 6210 straddle stacker truck in use.
-
Cold Storage
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions; testing and proving our systems in extreme cycles of freezing and thawing.
-
Narrow Aisle
With multiple combinations of heights, features and capacities, Raymond walkie straddle stackers provide narrow aisle storage with superior versatility to improve the utilization of your warehouse space.
-
Truck Loading and Unloading
Improve your dock operation productivity with the Raymond 6210 walkie straddle stacker truck. Raymond walkie pallet stackers are ideal for breakdown of pallets removed from trailers. Use one truck to off-load pallets from the end or sides of trailers, deliver product to storage or retail shelves, put product away in racking and move or stage work-in process on the manufacturing floor.
-
UL EE Applications
This lift truck complies with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are designed and manufactured to operate in classified locations as defined in NFPA 505. Type E and EE products are tested and certified by Underwriters Laboratories (UL).
-
Raymond 6210 Walkie Pallet Stacker: Right-Sized & Practical Versatility
The Raymond 6210 Walkie Pallet Stacker features an adjustable baseleg design that makes it a smart, economical solution for moving multiple pallet sizes. This walkie straddle truck enables operators to maneuver multiple-sized pallets quickly and easily in tight quarters. The 6210 stacker truck allows you to better utilize your vertical storage, off-load pallets from the end or sides of trailers and navigate in tight spaces with smooth, precise control – ideal for retail store, light-duty manufacturing and dock to stock applications.
