RCS 20/30/40 Counterbalanced Stacker Walkie Pallet Stacker
-
-

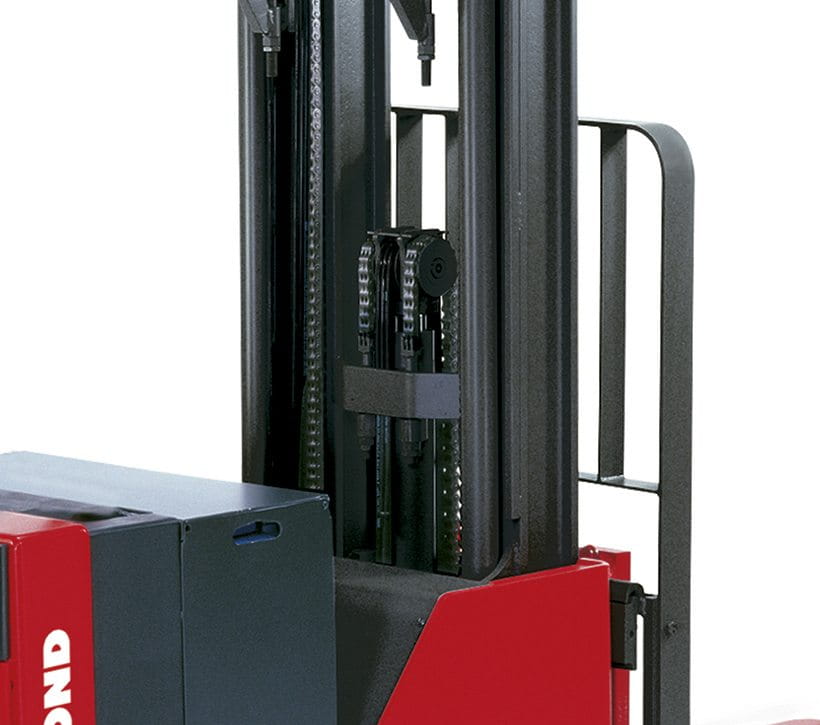

Impressive Handling Features
Standard load sensing torsion bar suspension allows for easier steering.Impressive Handling Features -
Lift/Lower Controls
The contoured handle provides electric lift/lower switches for simple, reliable control during travel.Lift/Lower Controls -

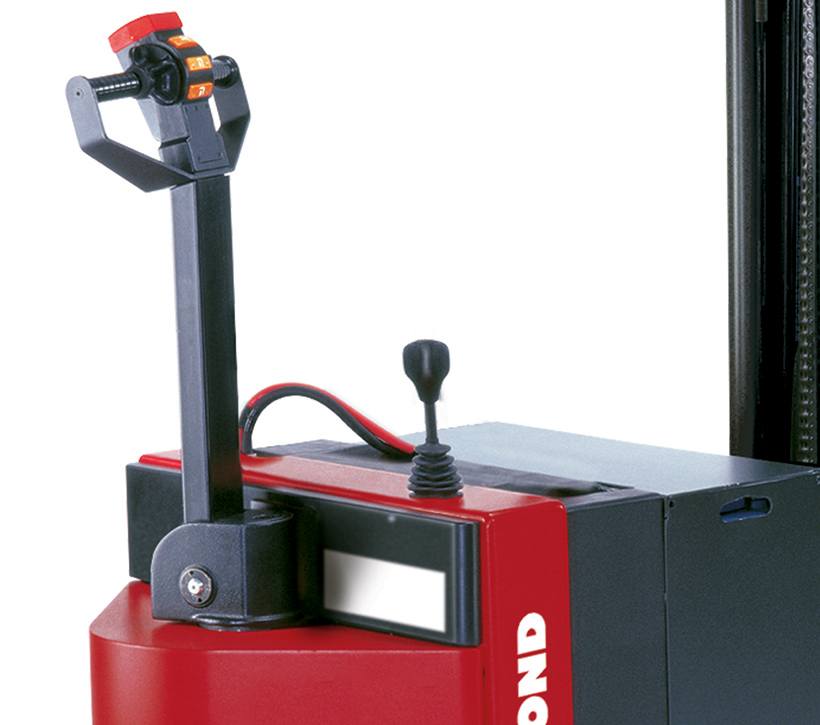

Secondary Controls
Secondary Lift/Lower controls are located on the chassis for more precise load placement.Secondary Controls -

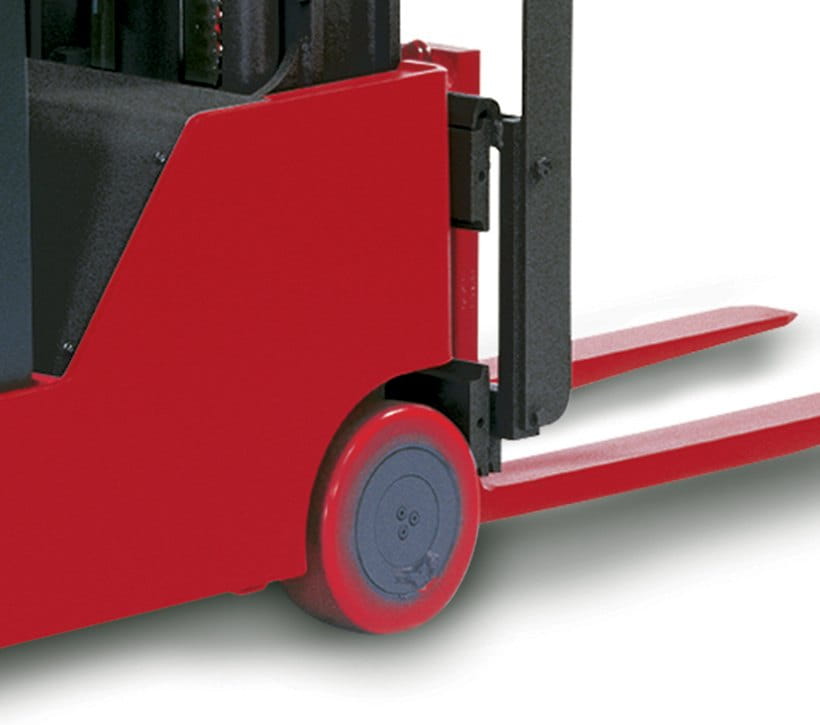

Transistorized Wheels
Navigate dock plates with ease with transistorized controls and large load wheels.Transistorized Wheels -

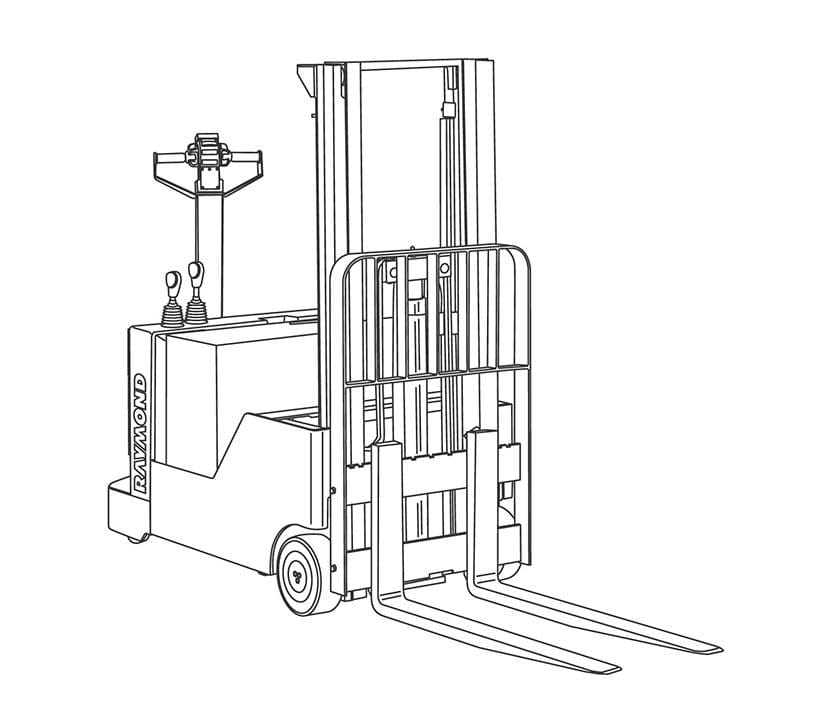

Programmable Performance
Fully programmable speed and acceleration allow you to customize performance to the operator and application.Programmable Performance
Counterbalanced Stackers Get the Job Done.

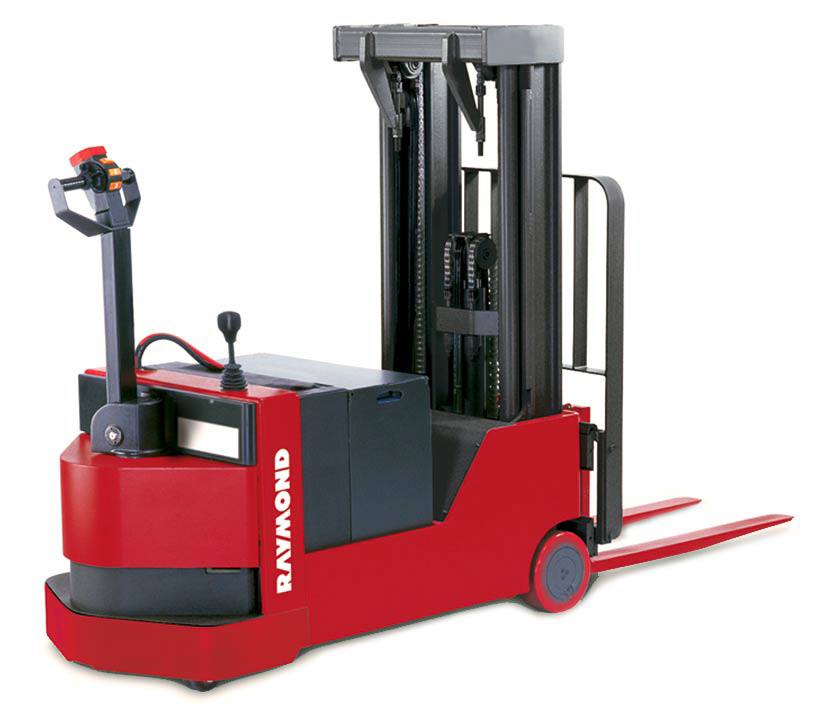

The RCS Walkie Counterbalanced pallet stackers provide versatile, efficient and reliable pallet stacking capabilities. The RCS walkie counterbalanced trucks are ideal for working in trailers, boxcars or with racks. Heavy-duty construction and on-board diagnostics make the RCS walkie easy to maintain and economical to own.
- Battery: 24 volt
- Capacity: 2,000 lbs, 3,000 lbs and 4,000 lbs
- Elevated Height: 189" maximum
- Loaded Travel Speed: 2.9 mph, 3.0 mph and 2.8 mph
- Unloaded Travel Speed: 3.2 mph, 3.4 mph and 3 mph
-
Battery Discharge Indicator
The Battery Discharge Indicator with Lift Interrupt and Hour Meter prevents damage to the motor's electrical components caused by over-discharging the truck's battery. -

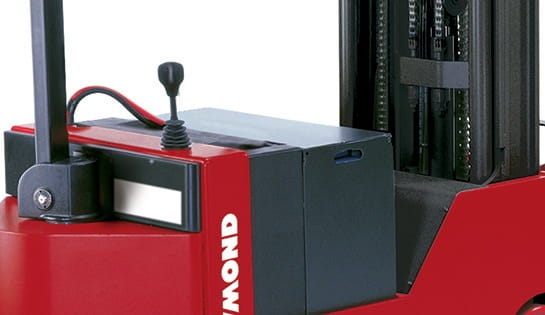

Valve and Hose Package
For applications with unique handling needs, the Auxiliary Hydraulic Function Valve and Hose Package provides additional function for custom handling in addition to lift/lower, tilt and sideshift. -
Sideshift
The sideshift function provides sideways movement of the carriage permitting a load to be picked up or put away even if it is not perfectly aligned with the truck. -
Warning Lights
The RSS Walkie Straddle Stacker is designed to provide excellent visibility and is equipped with a horn as standard equipment. However, environments with high levels of ambient noise may find it difficult to hear the horn when sounded. The warning light option may assist in making other workers aware of the RSS stacker truck in use.
-
Bulk Storage
Raymond RCS walkie counterbalanced stacker trucks are designed to efficiently maneuver through bulk storage areas. With various heights, capacities and features as well as a great range of operational applications, Raymond walkie counterbalanced pallet stackers can meet your bulk storage needs, no matter how specialized.
-
Cold Storage
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions; testing and proving our systems in extreme cycles of freezing and thawing.
-
Palletless Handling
Whether you are moving carpeting, steel, or other palletless loads, Raymond has the answer. The Raymond RCS walkie counterbalanced stacker is an ideal option to maximize space utilization, decrease damage to inventory and increase productivity with palletless handling.
-
Truck Loading and Unloading
Improve your dock operation productivity with the Raymond RCS walkie counterbalanced truck. Our RCS walkie counterbalanced pallet stackers are ideal for breakdown of pallets removed from trailers or boxcars, long runs to P&D stations, or a combination of both.
-
UL EE Applications
This lift truck complies with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are designed and manufactured to operate in classified locations as defined in NFPA 505. Type E and EE products are tested and certified by Underwriters Laboratories (UL).
-
